Part#:EX500T68HF

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

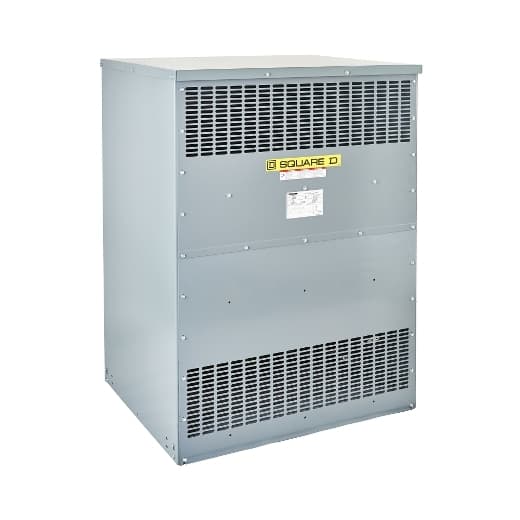

Schneider Electric - EX500T68HF

Product Details

  • Transformer BTU/HR
    2857.109333712 16.6 % 3572.5126739999996 25 % 7411.172423999999 50 % 13808.938673999999 75 % 22765.811424 100 %
  • Electrical Connection
    4 Hole Nema Pad primary 0.44 in (11.1 mm) 6 Hole Nema Pad secondary 0.44 in (11.1 mm) 8 Hole Nema Pad sec - XO 0.44 in (11.1 mm)
  • Degree Of Protection
    UL type 1 UL type 2, with 7400DS30J UL type 3R, with 7400WS30J
  • Mounting Support
    Floor Floor, with 7400FMB
  • Transformer Losses
    672.0 no load (core loss) 6000.0 load loss (coil loss)
  • Temperature Rise
    115 °C 220 °C insulated
  • Number Of Tap-Offs
    2 2.5 % FCAN 2 2.5 % FCBN
  • Sound Level
    6 dB NEMA ST-20 56 dB
  • Width
    48.27 in (1226 mm)
  • Height
    70.98 in (1803 mm)
  • Net Weight
    2915.00 lb(US) (1322.22 kg)
  • Let Through Current
    28.4 kA
  • %IX
    0.0474 %
  • X/R Ratio
    3.95
  • Coil Material
    Aluminium
  • Product Or Component Type
    DOE 2016 energy efficient transformer
  • Depth
    37.91 in (963 mm)
  • DOE Efficiency
    99.26 % at 35 % load factor , 167 °F (75.0 °C)
  • Basic IMP Level (BIL)
    10 kV
  • %IZ
    0.049 %
  • Network Frequency
    60 Hz
  • Secondary Voltage
    208Y/120 V
  • Transformer Type
    Energy efficient
  • Primary Voltage
    480 V delta
  • Type Of Cooling
    Natural convection
  • Device Application
    Low voltage electrical distribution
  • Range Of Product
    Square D
  • Rated Operational Power In VA
    500 kVA
  • Phase
    3 phase
  • Device Short Name
    DOE 2016

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EX500T68HF on Powermatic Associates is $26,916.00. Order now.
