Part#:EX500T76H

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

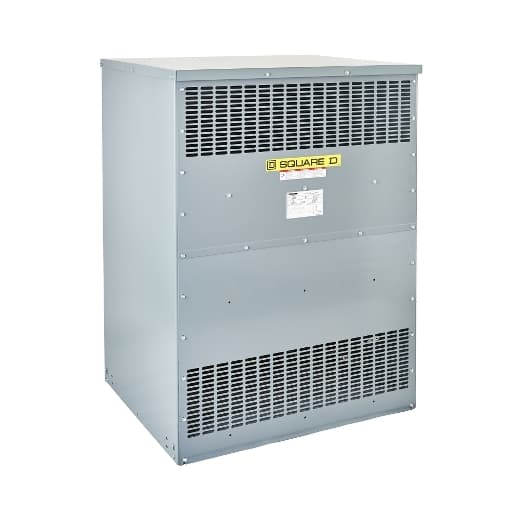

Schneider Electric - EX500T76H

Product Details

  • Device Short Name
    DOE 2016
  • Coil Material
    Aluminium
  • Network Frequency
    60 Hz
  • Product Or Component Type
    DOE 2016 energy efficient transformer
  • Basic IMP Level (BIL)
    10 kV
  • Transformer Type
    Energy efficient
  • Height
    70.98 in (1803 mm)
  • Rated Operational Power In VA
    500 kVA
  • Secondary Voltage
    480Y/277 V
  • Primary Voltage
    480 V delta
  • Depth
    37.91 in (963 mm)
  • Type Of Cooling
    Natural convection
  • Width
    48.27 in (1226 mm)
  • Range Of Product
    Square D
  • Phase
    3 phase
  • Net Weight
    2915.00 lb(US) (1322.22 kg)
  • Device Application
    Low voltage electrical distribution
  • Temperature Rise
    150 °C 220 °C insulated
  • Sound Level
    6 dB NEMA ST-20 56 dB
  • Number Of Tap-Offs
    2 2.5 % FCAN 2 2.5 % FCBN
  • Mounting Support
    Floor Floor, with 7400FMB
  • Degree Of Protection
    UL type 1 UL type 2, with 7400DS30J UL type 3R, with 7400WS30J
  • Electrical Connection
    4 Hole Nema Pad primary 0.44 in (11.1 mm) 6 Hole Nema Pad secondary 0.44 in (11.1 mm) 8 Hole Nema Pad sec - XO 0.44 in (11.1 mm)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
