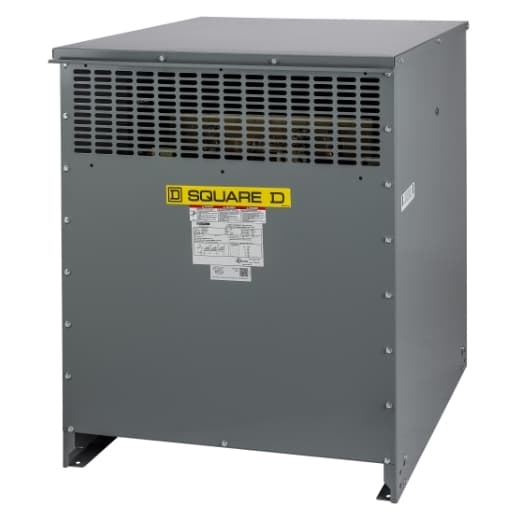

EXN112T6HCT Schneider Electric Industrial Automation Components

Product Details

• %IX
  2.77 %
• Net Weight
  730.00 lb(US) (331.12 kg)
• Box Number
  21M
• Primary Voltage
  480 V delta
• %IZ
  3.47 %
• Height
  37.52 in (953 mm)
• Device Short Name
  DOE 2016
• DOE Efficiency
  98.81 % at 35 % load factor , 167 °F (75.0 °C)
• Product Or Component Type
  DOE 2016 energy efficient transformer
• Basic IMP Level (BIL)
  10 kV
• Depth
  28.43 in (722 mm)
• Device Application
  Low voltage electrical distribution
• Type Of Cooling
  Natural convection
• Let Through Current
  7.80 kA
• Number Of Mounting Holes
  0.51 in (13 mm)
• Rated Operational Power In VA
  112.5 kVA
• Primary Operational Current
  135.32 A 270.63 A 112.5 kVA
• X/R Ratio
  1.46
• Phase
  3 phase
• Coil Material
  Aluminium
Range Of Product
Square D
Transformer Type
Energy efficient
Inrush Current
1518 A
Network Frequency
60 Hz
Width
31.30 in (795 mm)
Transformer Losses
227 no load (core loss) 2463 load loss (coil loss)
Sound Level
47 dB 6 dB NEMA ST-20
Electrical Connection
4 Hole Nema Pad secondary 0.44 in (11.1 mm) 4 Hole Nema Pad primary 0.44 in (11.1 mm)
Degree Of Protection
UL type 2 UL type 3R, with 7400WS21M
Number Of Tap-Offs
2 2.5 % FCAN 4 2.5 % FCBN
Secondary Voltage
240 V delta Centre tap 120 V
Temperature Rise
150 °C 220 °C insulated
Mounting Support
Floor Floor, with 7400FMB Ceiling, with 7400CMB21M
Transformer BTU/HR
1008 16.6 % 1300 25 % 2876 50 % 5502 75 % 9197 100 %
