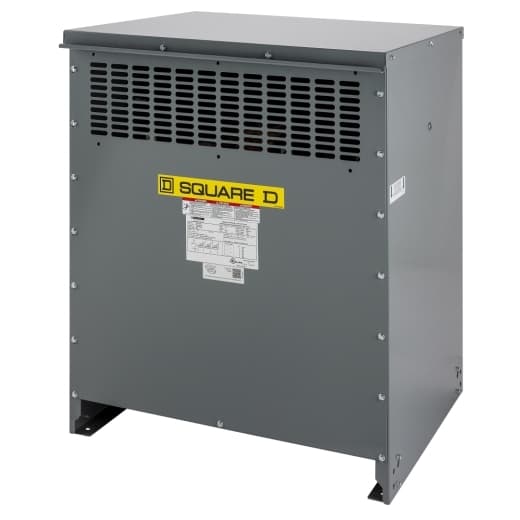

EXN150T65HCU Schneider Electric Industrial Automation Components

Product Details

• Depth
  32.56 in (827 mm)
• Range Of Product
  Square D
• Type Of Cooling
  Natural convection
• Box Number
  22M
• Secondary Voltage
  208Y/120 V
• %IZ
  5.23 %
• Product Or Component Type
  DOE 2016 energy efficient transformer
• Transformer Type
  Energy efficient
• DOE Efficiency
  98.97 % at 35 % load factor , 167 °F (75.0 °C)
• Device Short Name
  DOE 2016
• Primary Voltage
  600 V delta
• X/R Ratio
  2.33
• Width
  33.66 in (855 mm)
• Network Frequency
  60 Hz
• Basic IMP Level (BIL)
  10 kV
• Let Through Current
  7.96 kA
• Net Weight
  1192.00 lb(US) (540.68 kg)
• Height
  40.59 in (1031 mm)
• Rated Operational Power In VA
  150 kVA
• Coil Material
  Copper
Primary Operational Current
144.34 A 416.36 A 150 kVA
Inrush Current
1060 A
%IX
4.80 %
Number Of Mounting Holes
0.51 in (13 mm)
Device Application
Low voltage electrical distribution
Electrical Connection
4 Hole Nema Pad secondary 0.44 in (11.1 mm) 6 Hole Nema Pad sec - XO 0.44 in (11.1 mm)
Sound Level
47 dB 3 dB NEMA ST-20
Degree Of Protection
UL type 2 UL type 3R, with 7400WS22M
Phase
3 phase 3 phase
Transformer Losses
217 no load (core loss) 3301 load loss (coil loss)
Number Of Tap-Offs
2 2.5 % FCAN 4 2.5 % FCBN
Temperature Rise
150 °C 220 °C insulated
Mounting Support
Floor Floor, with 7400FMB Ceiling, with 7400CMB22M
Transformer BTU/HR
1053 16.6 % 1444 25 % 3556 50 % 7076 75 % 12004 100 %
