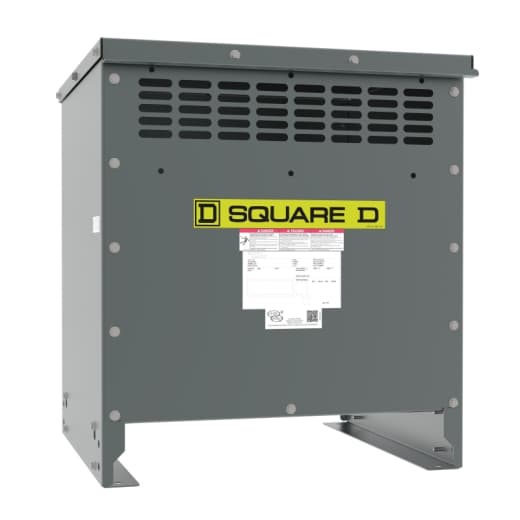

EXN15T3155H Schneider Electric Industrial Automation Components

Product Details

• Transformer BTU/HR
  241 16.6 % 308 25 % 667 50 % 1266 75 % 2105 100 %
• Mounting Support
  Floor Floor, with 7400FMB Ceiling, with 7400CMB17M Wall, with 7400WMB17M
• Electrical Connection
  2 Hole Nema Pad secondary 0.44 in (11.1 mm) 4 Hole Nema Pad sec - HO 0.44 in (11.1 mm) 2 Hole Nema Pad primary 0.44 in (11.1 mm)
• Temperature Rise
  150 °C 220 °C insulated
• Transformer Losses
  55 no load (core loss) 562 load loss (coil loss)
• Sound Level
  6 dB NEMA ST-20 39 dB
• Degree Of Protection
  UL type 2 UL type 3R, with 7400WS22M
• Number Of Mounting Holes
  0.51 in (13 mm)
• Depth
  21.18 in (538 mm)
• Net Weight
  191.01 lb(US) (86.64 kg)
• Width
  21.50 in (546 mm)
• Height
  23.98 in (609 mm)
• Let Through Current
  0.90 kA
• %IX
  2.12 %
• %IZ
  4.24 %
• Inrush Current
  1089 A
• X/R Ratio
  0.66
• Basic IMP Level (BIL)
  10 kV
• Coil Material
  Aluminium
• DOE Efficiency
  97.94 % at 35 % load factor , 167 °F (75.0 °C)
Primary Voltage
208 V delta
Secondary Voltage
480Y/277 V
Type Of Cooling
Natural convection
Primary Operational Current
36.08 A 18.04 A 15 kVA
Range Of Product
Square D
Box Number
17M
Network Frequency
60 Hz
Device Application
Low voltage electrical distribution
Rated Operational Power In VA
15 kVA
Phase
3 phase
Device Short Name
DOE 2016
Transformer Type
Energy efficient
Product Or Component Type
DOE 2016 energy efficient transformer
