EXN15T3HB Schneider Electric Industrial Automation Components

EXN15T3HB on Powermatic Associates
Schneider Electric

Part#:EXN15T3HB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

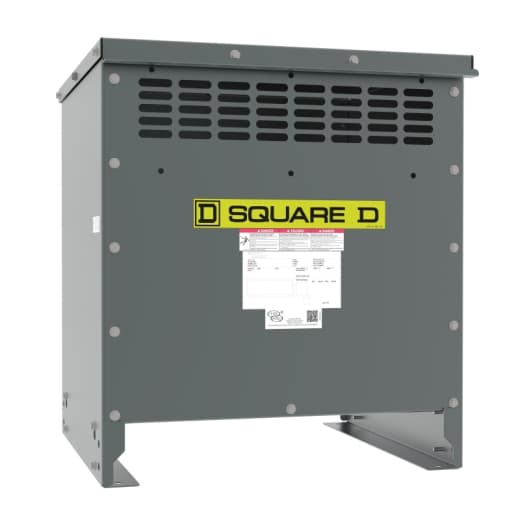

Schneider Electric - EXN15T3HB

Product Details

  • Device Application
    Low voltage electrical distribution
  • Range Of Product
    Square D
  • Basic IMP Level (BIL)
    10 kV
  • Network Frequency
    60 Hz
  • Secondary Voltage
    208Y/120 V
  • Rated Operational Power In VA
    15 kVA
  • Let Through Current
    1.04 kA
  • Depth
    21.18 in (538 mm)
  • Phase
    3 phase
  • Primary Operational Current
    144.34 A 416.36 A 150 kVA
  • %IZ
    4.01 %
  • Net Weight
    195.00 lb(US) (88.45 kg)
  • Inrush Current
    234 A
  • Height
    23.98 in (609 mm)
  • Box Number
    17M
  • Primary Voltage
    480 V delta
  • Device Short Name
    DOE 2016
  • DOE Efficiency
    98.09 % at 35 % load factor , 167 °F (75.0 °C)
  • Type Of Cooling
    Natural convection
  • Number Of Mounting Holes
    0.51 in (13 mm)
  • Transformer Type
    Energy efficient
  • Coil Material
    Aluminium
  • X/R Ratio
    1.00
  • Product Or Component Type
    DOE 2016 energy efficient transformer
  • %IX
    2.79 %
  • Width
    21.50 in (546 mm)
  • Number Of Tap-Offs
    2 2.5 % FCAN 4 2.5 % FCBN
  • Degree Of Protection
    UL type 2 UL type 3R, with 7400WS22M
  • Transformer Losses
    52 no load (core loss) 442 load loss (coil loss)
  • Sound Level
    6 dB NEMA ST-20 39 dB
  • Temperature Rise
    80 °C 220 °C insulated
  • Electrical Connection
    2 Hole Nema Pad secondary 0.44 in (11.1 mm) 4 Hole Nema Pad sec - XO 0.44 in (11.1 mm) 2 Hole Nema Pad primary 0.44 in (11.1 mm)
  • Mounting Support
    Floor Floor, with 7400FMB Ceiling, with 7400CMB17M Wall, with 7400WMB17M
  • Transformer BTU/HR
    219 16.6 % 272 25 % 554 50 % 1026 75 % 1686 100 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EXN15T3HB on Powermatic Associates is $3,531.00. Order now.
