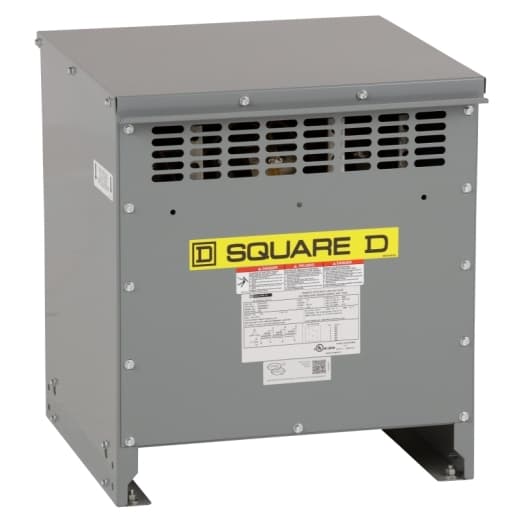

EXN15T65HCU Schneider Electric Industrial Automation Components

Product Details

• Transformer BTU/HR
  204 16.6 % 264 25 % 584 50 % 1119 75 % 1866 100 %
• Mounting Support
  Floor Floor, with 7400FMB Ceiling, with 7400CMB17M Wall, with 7400WMB17M
• Electrical Connection
  2 Hole Nema Pad secondary 0.44 in (11.1 mm) 4 Hole Nema Pad sec - XO 0.44 in (11.1 mm) 2 Hole Nema Pad primary 0.44 in (11.1 mm)
• Temperature Rise
  150 °C 220 °C insulated
• Sound Level
  6 dB NEMA ST-20 39 dB
• Transformer Losses
  46 no load (core loss) 501 load loss (coil loss)
• Degree Of Protection
  UL type 2 UL type 3R, with 7400WS22M
• Number Of Tap-Offs
  2 2.5 % FCAN 4 2.5 % FCBN
• Depth
  21.18 in (538 mm)
• Number Of Mounting Holes
  0.51 in (13 mm)
• Net Weight
  234.00 lb(US) (106.14 kg)
• Width
  21.50 in (546 mm)
• Height
  23.98 in (609 mm)
• Let Through Current
  1.10 kA
• Inrush Current
  221 A
• X/R Ratio
  0.56
• %IX
  1.85 %
• %IZ
  3.78 %
• DOE Efficiency
  98.16 % at 35 % load factor , 167 °F (75.0 °C)
• Secondary Voltage
  208Y/120 V
Basic IMP Level (BIL)
10 kV
Coil Material
Copper
Primary Operational Current
14.43 A 41.64 A 15 kVA
Type Of Cooling
Natural convection
Primary Voltage
600 V delta
Network Frequency
60 Hz
Rated Operational Power In VA
15 kVA
Phase
3 phase
Device Short Name
DOE 2016
Product Or Component Type
DOE 2016 energy efficient transformer
Range Of Product
Square D
Box Number
17M
Device Application
Low voltage electrical distribution
Transformer Type
Energy efficient
