EZM11200FST Schneider Electric Industrial Automation Components

EZM11200FST on Powermatic Associates
Schneider Electric

Part#:EZM11200FST

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

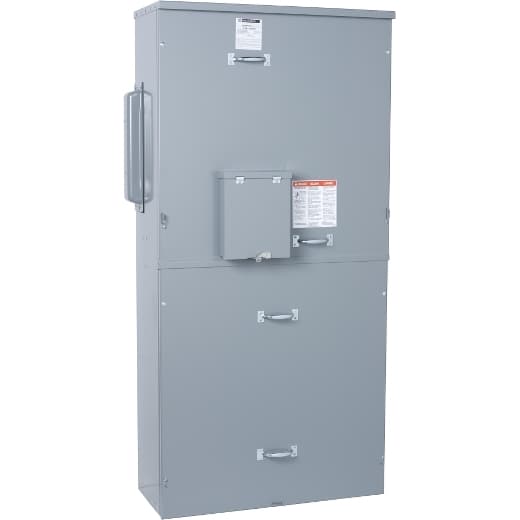

Square D by Schneider Electric EZM11200FST is a meter center main unit designed for surface mounting. It features a steel enclosure and an aluminium busbar, ensuring compatibility with various installation environments. This unit is protected to a NEMA 3R degree, making it suitable for both indoor and rainproof applications. With dimensions of H1191mm x W602mm x D348mm (H46.9" x W23.69" x D13.69"), it supports a rated voltage of 120Vac/240Vac and operates within a single-phase (1PH-3W) network. The EZM11200FST is rated for a main and busbar current of 1200A and accommodates a cross-section of 1 x 6AWG to 300kcmil aluminium/copper lugs for grounding.

Product Details

  • Electrical Connection
    Lugs 1 AWG 6...300 kcmil aluminium/copper) ground Lugs 4 AWG 3/0...500 kcmil aluminium/copper) line Lugs 4 AWG 3/0...500 kcmil aluminium/copper) neutral
  • Number Of Phases
    1 phase in 1 phase out
  • Included Items
    Closing plate Main switch2P 1200 A 100 kA
  • Width
    23.69 in (601.73 mm)
  • Depth
    13.69 in (347.73 mm)
  • Height
    46.90 in (1191.26 mm)
  • Service Feed Location
    OH
  • Wiring Configuration
    3-wire
  • Device Mounting
    Surface
  • Enclosure Material
    Steel
  • Material
    Aluminium busbar
  • [Ue] Rated Operational Voltage
    120/240 V AC
  • Main Rated Current
    1200 A
  • Product Or Component Type
    Meter center main unit
  • Bus Rated Current
    1200 A
  • Main Type
    Main Fusible Switch
  • Range Of Product
    EZ meter-pak

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EZM11200FST on Powermatic Associates is $11,564.00. Order now.
