GV2ME10 Schneider Electric Industrial Automation Components

GV2ME10 on Powermatic Associates
Schneider Electric

Part#:GV2ME10

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

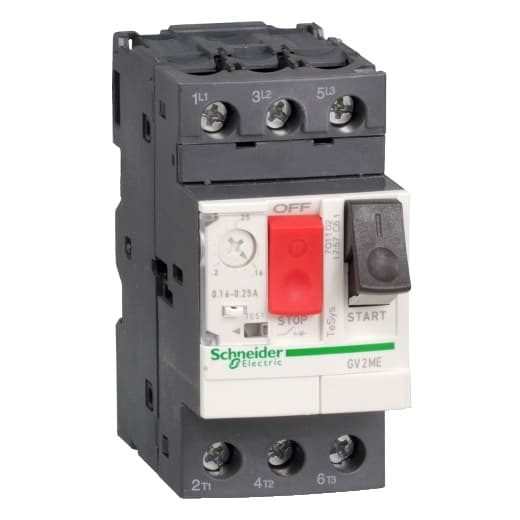

Schneider Electric GV2ME10 is a Motor Protection Circuit Breaker (MPCB) within the GV2ME sub-range, designed for thermal-magnetic motor protection and manual motor starting. It features 3 poles and offers protection functions against short-circuit and thermal overload with a rated current of 4 - 6.3 A. The device is equipped for DIN rail or mounting plate installation, with a net width of 45 mm and operates via a push-button. Protection settings are fixed with a short-circuit pickup current of 78A. It has a rated insulation voltage (Ui) of 690 V and a rated impulse voltage (Uimp) of 6 kV. The rated active power varies with voltage: 2.2 kW at 400/415Vac, 3 kW at 500Vac, and 4 kW at 690Vac. The trip current rating is 6.3 AT, with a frame current rating of 32 AF. It boasts a mechanical durability of 100,000 operations at no load and an electrical durability of 100,000 operations at 440Vac; AC-3; In/2 with load. Connection is made through screw-clamp terminals, and it is designed for use with a phase-to-phase rated voltage of 690 V across 3 protected poles. The trip unit type is thermal-magnetic, supporting a minimum current of 4 A and a maximum current of 6.3 A, classified under utilisation category A AC-3.

Product Details

  • Poles Description
    3P
  • Thermal Protection Adjustment Range
    4…6.3 A
  • Electrical Durability
    100000 cycles AC-3 440 V
  • Depth
    3.09 in (78.5 mm)
  • Product Name
    TeSys GV2
  • Control Type
    Push-button
  • [Ith] Conventional Free Air Thermal Current
    6.3 A IEC 60947-4-1
  • Device Application
    Motor
  • Operating Position
    Any position
  • Mechanical Durability
    100000 cycles
  • Height
    3.50 in (89 mm)
  • Device Short Name
    GV2ME
  • Maximum Operating Rate
    25 cyc/h
  • Tightening Torque
    15.05 lbf.in (1.7 N.m) screw clamp terminals
  • Magnetic Tripping Current
    78 A
  • Suitability For Isolation
    Yes conforming to IEC 60947-1
  • Range
    TeSys
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947-2
  • Width
    1.77 in (45 mm)
  • [Ui] Rated Insulation Voltage
    690 V AC 50/60 Hz IEC 60947-2
  • Rated Duty
    Continuous IEC 60947-4-1
  • Trip Unit Technology
    Thermal-magnetic
  • Product Or Component Type
    Circuit breaker
  • Network Frequency
    50/60 Hz IEC 60947-4-1
  • Line Rated Current
    6.3 A
  • Power Dissipation Per Pole
    2.5 W
  • Phase Failure Sensitivity
    Yes IEC 60947-4-1
  • Network Type
    AC
  • [Ue] Rated Operational Voltage
    690 V AC 50/60 Hz conforming to IEC 60947-2
  • Net Weight
    0.57 lb(US) (0.26 kg)
  • Fixing Mode
    35 mm symmetrical DIN rail clipped Panel screwed with adaptor plate)
  • Utilisation Category
    AC-3 IEC 60947-4-1 Category A IEC 60947-2
  • Motor Power Kw
    2.2 kW 400/415 V AC 50/60 Hz 3 kW 500 V AC 50/60 Hz 4 kW 690 V AC 50/60 Hz
  • [Ics] Rated Service Short-Circuit Breaking Capacity
    100 % 500 V AC 50/60 Hz IEC 60947-2 100 % 230/240 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 400/415 V AC 50/60 Hz IEC 60947-2 75 % 690 V AC 50/60 Hz IEC 60947-2
  • Breaking Capacity
    100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 50 kA Icu 500 V AC 50/60 Hz IEC 60947-2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of GV2ME10 on Powermatic Associates is $179.93. Order now.

GV2ME10 Related Documents

Catalog-1631034861177.pdfProduct Datasheet-1631034861174.pdfInstruction Sheet-1631034861183.pdf
