Part#:HDL26060C

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

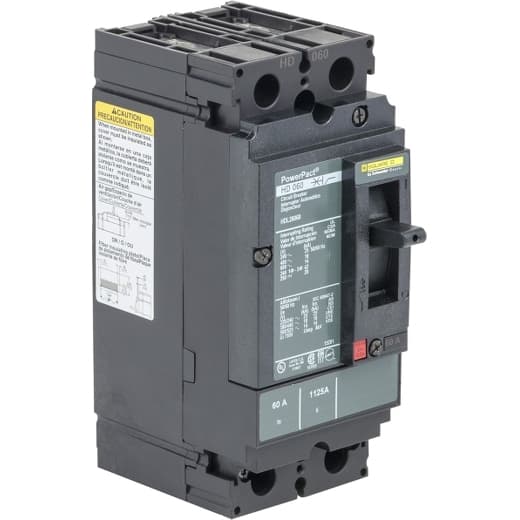

Square D by Schneider Electric HDL26060C is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HDL sub-range, designed with a PowerPact H-Frame 150 TMD 2P 60A 600Vac/250Vdc 14kA with lugs 100% rated. It features a 2-pole (2P) configuration and offers thermal protection for overload and magnetic protection for short-circuit scenarios. The rated current is 60A, with a rated insulation voltage (Ui) of 750 V, and it operates at a rated voltage (AC) of 600Vac 600Y/347Vac. This unit is designed for individual unit mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth. It has a degree of protection of IP40 and operates with a toggle (manual) mechanism. Protection settings include over-current fixed at 60A, short-circuit hold current fixed at 800A, and short-circuit trip current fixed at 1450A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 60 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 25kA (240Vac; UL489), 18kA (480Vac; UL489), 18kA (480Y/277Vac; UL489), 14kA (600Vac; UL489), 14kA (600Y/347Vac; UL489), and 20kA (250Vdc; UL489). The trip unit type is thermal-magnetic (fixed) with no display, and it falls under the utilisation category A. Connections are made via lugs on both load and line sides.

Product Details

  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Range Of Product
    PowerPact H
  • Mounting Mode
    Unit mount
  • Line Rated Current
    60 A
  • Width
    2.74 in (69.60 mm)
  • Breaking Capacity Code
    D
  • Magnetic Hold Current
    800 A
  • Magnetic Tripping Current
    1450 A
  • Continuous Current Rating
    100 %
  • Product Or Component Type
    Circuit breaker
  • Depth
    4.36 in (110.74 mm)
  • Number Of Poles
    2P
  • Height
    6.4 in (162.56 mm)
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HDL26060C on Powermatic Associates is $1,566.00. Order now.
