HGA36040 Schneider Electric Industrial Automation Components

What is the price of HGA36040?
Purchase the HGA36040 from Powermatic Associates at the price of $1,575.00. Order today.

Out if stock but available for backorder.

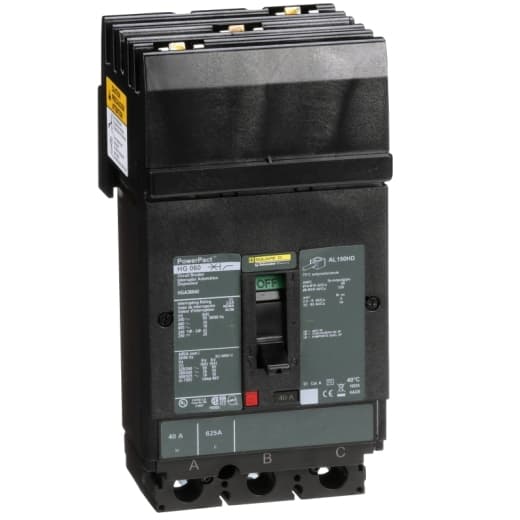

Square D by Schneider Electric HGA36040 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HGA sub-range, featuring a PowerPact H-Frame 150 TMD design. It is a 3-pole (3P) device with a rated current of 40A and offers thermal protection for overload and magnetic protection for short-circuit scenarios. The breaker is designed for I-line connection across ABC phases and supports a rated insulation voltage (Ui) of 750 V, with AC rated voltages of 600Vac and 600Y/347Vac, and a DC rated voltage of 500Vdc. It mounts on I-line with line side isolated plug-on jaws plus a mechanical I-Line bracket mechanism, ensuring a robust attachment. The device has a net height of 163 mm, a width of 104 mm, and a depth of 86 mm. It offers a degree of protection of IP40 and operates manually via a toggle. Protection settings include over-current fixed at 40A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 850A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 40 AT, with a frame current rating of 150 AF. Its short circuit breaking rating varies across voltages, with 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc and 500Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed), and it does not include a display. The utilisation category is A.
