Part#:HJL36070C

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

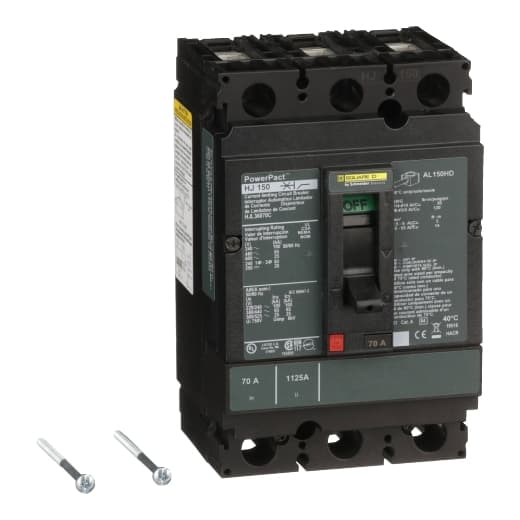

Square D by Schneider Electric HJL36070C is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HJL sub-range, featuring a PowerPact H-Frame 150 TMD design. It is a 3-pole (3P) device with a rated current of 70A and offers thermal protection (overload) and magnetic protection (short-circuit). The breaker has a rated insulation voltage (Ui) of 750 V, a rated voltage (AC) of 600Vac/600Y/347Vac, and a rated voltage (DC) of 250Vdc. It is designed for individual unit mount on plate with lugs on both load and line sides for connection. The net dimensions are 163 mm in height, 104 mm in width, and 86 mm in depth, with a degree of protection of IP40. The operating mode is manual toggle, and it features over-current protection fixed at 70A, short-circuit hold current fixed at 800A, and short-circuit trip current fixed at 1450A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 70 AT, frame current rating is 150 AF, and it has a short circuit breaking rating of up to 100kA at 240Vac, 65kA at 480Vac/480Y/277Vac, 25kA at 600Vac/600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display, and it falls under utilisation category A.

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Continuous Current Rating
    100 %
  • Depth
    4.36 in (110.74 mm)
  • Width
    4.12 in (104.65 mm)
  • Height
    6.4 in (162.56 mm)
  • Range Of Product
    PowerPact H
  • Magnetic Tripping Current
    1450 A
  • Line Rated Current
    70 A
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Mounting Mode
    Unit mount
  • Number Of Poles
    3P
  • Magnetic Hold Current
    800 A
  • Breaking Capacity Code
    J
  • Product Or Component Type
    Circuit breaker

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HJL36070C on Powermatic Associates is $3,778.50. Order now.
