HJL36100C Schneider Electric Industrial Automation Components

HJL36100C on Powermatic Associates
Schneider Electric

Part#:HJL36100C

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

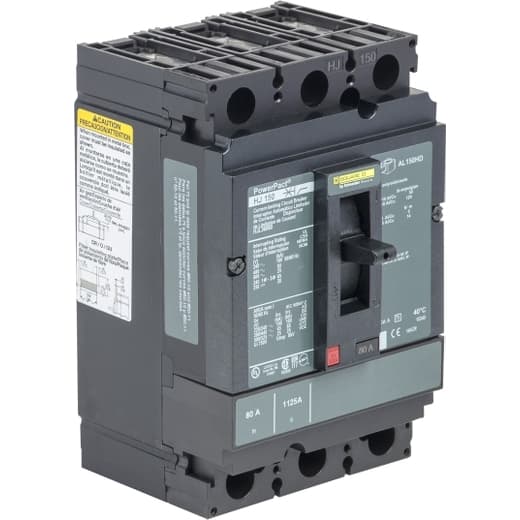

Square D by Schneider Electric HJL36100C is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HJL sub-range, featuring a PowerPact H-Frame 150 TMD design. It is a 3-pole (3P) device with a rated current of 100A and offers thermal protection for overload and magnetic protection for short-circuits. The breaker is designed for a rated insulation voltage (Ui) of 750 V, with AC rated voltages of 600Vac and 600Y/347Vac, and a DC rated voltage of 250Vdc. It supports a mounting mode of individual unit mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth. The device has an IP40 degree of protection and operates with a toggle (manual) mechanism. Protection settings include over-current fixed at 100A, short-circuit hold current fixed at 900A, and short-circuit trip current fixed at 1700A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 100 AT, with a frame current rating of 150 AF. Its short-circuit breaking rating varies with voltage, up to 100kA at 240Vac according to UL489 standards. The trip unit type is thermal-magnetic (fixed), without a display, and it falls under utilisation category A. Connection is facilitated by lugs on both load and line sides.

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Continuous Current Rating
    100 %
  • Depth
    4.36 in (110.74 mm)
  • Width
    4.12 in (104.65 mm)
  • Breaking Capacity Code
    J
  • Height
    6.4 in (162.56 mm)
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Magnetic Tripping Current
    1700 A
  • Number Of Poles
    3P
  • Magnetic Hold Current
    900 A
  • Mounting Mode
    Unit mount
  • Product Or Component Type
    Circuit breaker
  • Line Rated Current
    100 A
  • Range Of Product
    PowerPact H

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HJL36100C on Powermatic Associates is $2,519.00. Order now.
