HJL36150C Schneider Electric Industrial Automation Components

HJL36150C on Powermatic Associates
Schneider Electric

Part#:HJL36150C

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

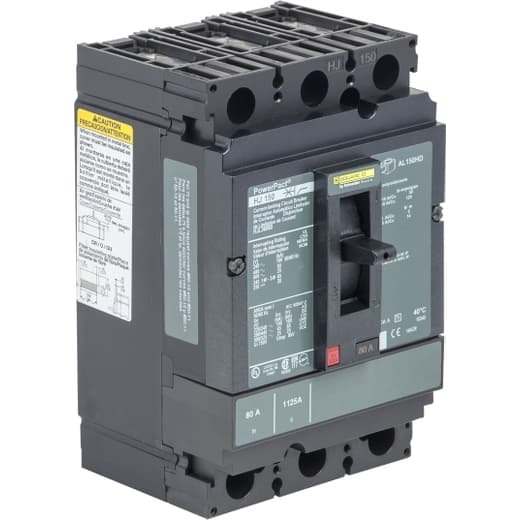

Square D by Schneider Electric HJL36150C is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HJL sub-range, featuring a PowerPact H-Frame design. This 3-pole (3P) circuit breaker is rated for 150A with a thermal-magnetic trip unit type, fixed over-current protection at 150A, and short-circuit protection settings fixed at 900A hold current and 1700A trip current. It supports a rated insulation voltage (Ui) of 750 V, rated voltages of 600Vac, 600Y/347Vac for AC, and 250Vdc for DC, with a rated operating voltage (Ue) of 690 V and a rated impulse voltage (Uimp) of 8 kV. The device offers thermal protection for overload and magnetic protection for short-circuits, featuring lugs on both load and line sides for connections. It is designed for individual unit mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth, and provides a degree of protection of IP40. The operating mode is manual toggle, and it has a short circuit breaking rating of 100kA at 240Vac, 65kA at 480Vac and 480Y/277Vac, 25kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards.

Product Details

  • Line Rated Current
    150 A
  • Number Of Poles
    3P
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Magnetic Tripping Current
    1700 A
  • Breaking Capacity Code
    J
  • Magnetic Hold Current
    900 A
  • Height
    6.4 in (162.56 mm)
  • Mounting Mode
    Unit mount
  • Width
    4.12 in (104.65 mm)
  • Range Of Product
    PowerPact H
  • Depth
    4.36 in (110.74 mm)
  • Product Or Component Type
    Circuit breaker
  • Continuous Current Rating
    100 %
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HJL36150C on Powermatic Associates is $6,209.00. Order now.
