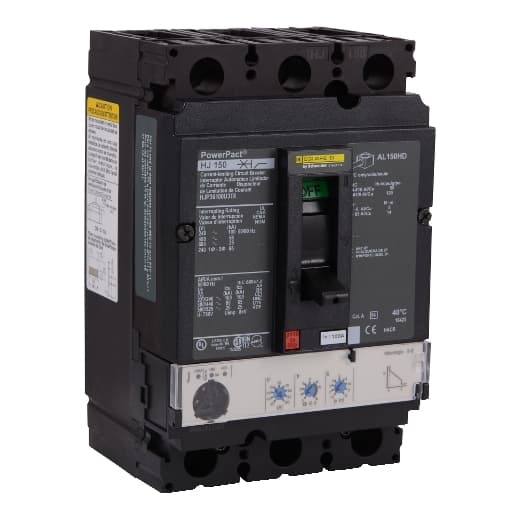

HJP36100U31X Schneider Electric Industrial Automation Components

HJP36100U31X on Powermatic Associates
Schneider Electric

Part#:HJP36100U31X

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - HJP36100U31X

Product Details

  • Height
    6.4 in (162.56 mm)
  • Depth
    4.36 in (110.74 mm)
  • Continuous Current Rating
    80 %
  • Mounting Mode
    Unit mount
  • Tightening Torque
    49.56…60.18 lbf.in (5.6…6.8 N.m)
  • Line Rated Current
    100 A
  • Range Of Product
    PowerPact H
  • Number Of Poles
    3P
  • Product Or Component Type
    Circuit breaker
  • Breaking Capacity Code
    J
  • Width
    4.12 in (104.65 mm)
  • Electrical Connection
    Terminal nut line Lugs load

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HJP36100U31X on Powermatic Associates is $3,387.00. Order now.
