HL1IMA16C1 Schneider Electric Electronic Components

Name: HL1IMA16C1
Brand: Schneider Electric

Part#:HL1IMA16C1

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

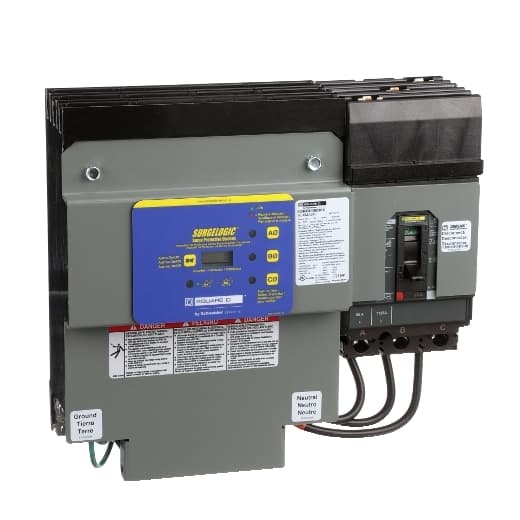

Surge protection device, Surgelogic, HL, 160kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1

Product Details

Voltage Rating
120/240 V AC
Range
Surgelogic
SCCR
200 kA
Wiring Configuration
3-wire
Breaking Capacity
50 kA
Height
12.16 in (308.9 mm)
Product
Surge protection device
MCOV
150 V
Cable Length
19.02 in (483 mm)
Type
HL
Device Short Name
IMA
Max Number Of Poles
3
Depth
5.59 in (142.1 mm)
Trip Unit Technology
Thermal-magnetic
Surge Current
160 kA
Rated Current
60 A
Width
13.46 in (341.9 mm)
Number Of Phases
1 phase
Mounting Support
Panel mounting
Local Signalling
Status LED green per phase normal operation Status LED red per phase fault

Provided Equipment

Alarm enable/disable switch Surge counter Circuit breaker

Connection

I-Line line Lugs ground AWG 6 copper 35.40 lbf.in (4 N.m) Lugs neutral AWG 6 copper 35.40 lbf.in (4 N.m)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
