ILA2E571PC1F0 Schneider Electric Industrial Automation Components

ILA2E571PC1F0 on Powermatic Associates
Schneider Electric

Part#:ILA2E571PC1F0

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

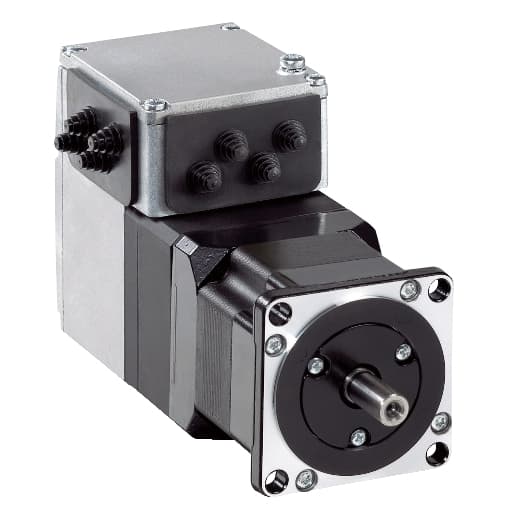

Schneider Electric ILA2E571PC1F0 is a DC servo motor within the Servo motors sub-range, featuring an integrated servo drive and DC motor. It is designed with a single-turn encoder (16384ppr), a smooth shaft, a holding brake, and is configured for a single (1) motor stack, optimized for medium rotation speed and medium torque. The connection is facilitated through an industrial connector, and it supports the EtherCAT communication protocol. For safety, it includes the Safe Torque OFF (STO) protection function. The motor operates on a supply voltage of 24Vdc-48Vdc and is mounted via a 57x57mm flange. Its dimensions are 92.2 mm in height, 57.2 mm in width, and 190.8 mm in depth. The maximum torque is 0.44Nm, with a moment of inertia of 0.165kg.cm2. It achieves rotational speeds of 3200rpm at 24Vdc and 5100rpm at 48Vdc, with a stall torque of 0.62Nm.

Product Details

  • Range Of Product
    Lexium integrated drive
  • Winding Type
    Medium speed of rotation and medium torque
  • Electrical Connection
    Industrial connector
  • Feedback Type
    Single turn encoder
  • Commissioning Interface
    RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
  • Motor Type
    AC Synchronous Servo Motor
  • Gear Box Type
    Without
  • Centring Collar Diameter
    1.97 in (50 mm)
  • Voltage State 0 Guaranteed
    -3...4.5 V
  • Type Of Cooling
    Natural convection
  • Product Or Component Type
    Motion integrated drive
  • Supply Voltage Limits
    18…55.2 V
  • Net Weight
    3.09 lb(US) (1.4 kg)
  • Mounting Holes Diameter
    0.20 in (5.2 mm)
  • Length
    7.51 in (190.8 mm)
  • Motor Flange Size
    2.24 in (57 mm)
  • Centring Collar Depth
    0.06 in (1.6 mm)
  • Input/Output Type
    4 signals (each be used as input or output)
  • Rotor Inertia
    0.165 kg.cm²
  • Number Of Motor Poles
    6
  • Circle Diameter Of The Mounting Holes
    2.62 in (66.6 mm)
  • Speed Feedback Resolution
    16384 points/turn
  • Brake Application Time
    13 ms
  • Holding Torque
    10.62 lbf.in (1.2 N.m) holding brake
  • Shaft End
    Untapped
  • Shaft Length
    0.79 in (20 mm)
  • Accuracy Error
    +/- 0.05 °
  • Brake Pull-In Power
    10 W
  • Phase
    Single phase
  • Number Of Motor Stacks
    1
  • Device Short Name
    ILA
  • Transmission Rate
    100 Mbits
  • Shaft Diameter
    0.35 in (9 mm)
  • Continuous Stall Torque
    3.89 lbf.in (0.44 N.m)
  • Service Life In Hours
    20000 h bearing
  • Number Of Mounting Holes
    4
  • Associated Fuse Rating
    16 A
  • Discrete Output Voltage
    23...25 V
  • Marking
    CE
  • Communication Interface
    EtherCAT, Integrated
  • Holding Brake
    With
  • Mounting Support
    Flange
  • Second Shaft
    Without second shaft end
  • Voltage State 1 Guaranteed
    15...30 V
  • Network Type
    DC
  • Nominal Torque
    3.89 lbf.in (0.44 N.m)
  • Brake Release Time
    14 ms
  • Peak Stall Torque
    5.49 lbf.in (0.62 N.m)
  • Maximum Radial Force Fr
    89 N
  • Nominal Speed
    3200 rpm 24 V 5100 rpm 48 V
  • Discrete Input Current
    10 mA at 24 V safety input 2 mA at 24 V 24 V signal interface
  • Maximum Switching Current
    100 mA per output 200 mA total
  • Maximum Axial Force Fa
    104 N force pressure) 104 N tensile force)
  • [Us] Rated Supply Voltage
    48 V 24 V
  • Current Consumption
    5000 mA maximum continuous 7000 mA peak
  • Protection Type
    Short circuit of the output voltage Overload of output voltage Safe torque off

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of ILA2E571PC1F0 on Powermatic Associates is $3,547.50. Order now.
