JDL36150 Schneider Electric Industrial Automation Components

JDL36150 on Powermatic Associates
Schneider Electric

Part#:JDL36150

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

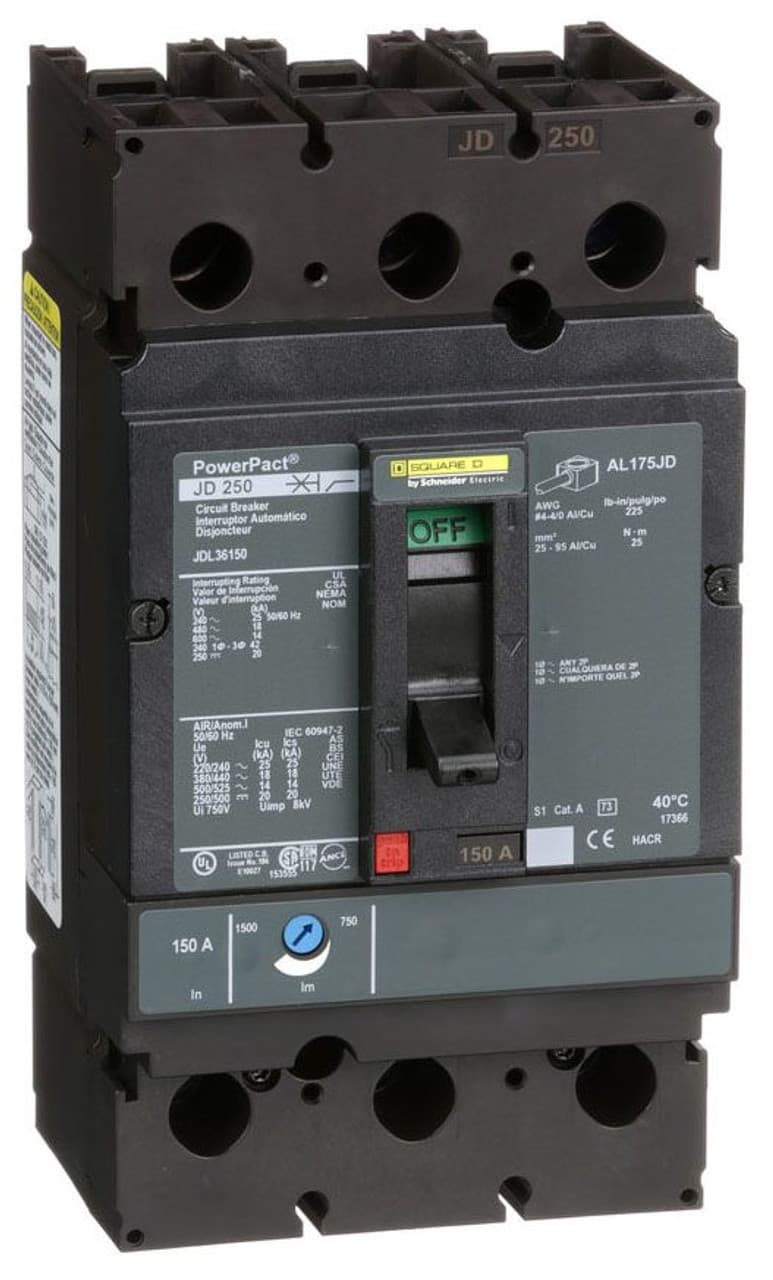

Square D by Schneider Electric JDL36150 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT JDL sub-range, featuring a PowerPact J-Frame design. This 3-pole (3P) circuit breaker is rated for 150A with a rated insulation voltage (Ui) of 750 V and an AC rated voltage of 600Vac 600Y/347Vac. It supports a DC rated voltage of 250Vdc. The connection type includes lugs on both load and line sides, designed for individual unit mount on plate. It offers thermal protection for overload and magnetic protection for short-circuit conditions, with a net height of 191 mm, width of 105 mm, and depth of 127 mm. The degree of protection is IP40, and it operates manually via a toggle. Protection settings include over-current fixed at 150A and short-circuit pickup current adjustable between 750A and 1500A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 150 AT, with a frame current rating of 250 AF. Its short circuit breaking rating varies by voltage, up to 25kA at 240Vac and 20kA at 250Vdc, according to UL489 standards. The trip unit type is thermal-magnetic (adjustable) without a display, and it falls under utilisation category A.

Product Details

  • Breaking Capacity Code
    D
  • Height
    7.52 in (191.01 mm)
  • Magnetic Hold Current
    750 A
  • Continuous Current Rating
    80 %
  • Magnetic Tripping Current
    1500 A
  • Depth
    5 in (127.00 mm)
  • Tightening Torque
    230.12 lbf.in (26 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 4...AWG 4/0)
  • Number Of Poles
    3P
  • Product Or Component Type
    Circuit breaker
  • Width
    4.12 in (104.65 mm)
  • Shipping Weight:
    4.85 lbs.
  • UPC:
    78590195583
  • TS PIK:
    120071531
  • Shipping Width:
    8.00 In.
  • Shipping Length:
    9.00 In.
  • Shipping Height:
    6.00 In.
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of JDL36150 on Powermatic Associates is $2,730.00. Order now.
