JDL36175C Schneider Electric Electronic Components

JDL36175C on Powermatic Associates
Schneider Electric

Part#:JDL36175C

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

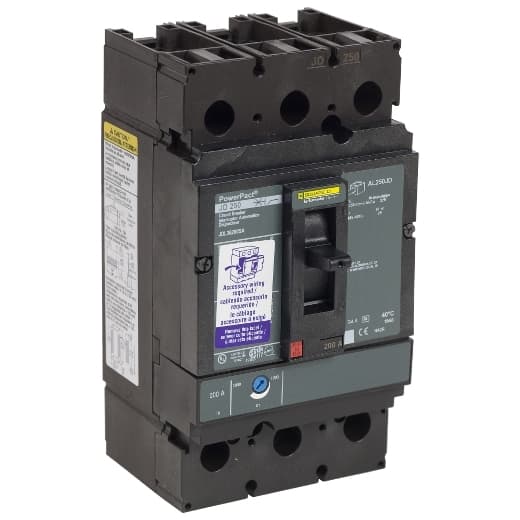

Square D by Schneider Electric JDL36175C is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT JDL sub-range, featuring a PowerPact J-Frame 250 TMD 3P 175A 600Vac 14kA design with lugs on both load and line sides for connection. This 3-pole (3P) unit offers thermal protection for overload scenarios and magnetic protection against short-circuits, with a rated current of 175A. It operates at a rated insulation voltage (Ui) of 750 V and an AC rated voltage of 600Vac 600Y/347Vac, alongside a DC rated voltage of 250Vdc. The MCCB is designed for individual unit mount on plate, with dimensions of 191 mm in height, 105 mm in width, and 127 mm in depth. It provides an IP40 degree of protection and features a toggle (manual) operating mode. Protection settings include over-current fixed at 175A and short-circuit pickup current adjustable between 875A and 1750A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 175 AT, with a frame current rating of 250 AF. Its short circuit breaking rating varies by voltage, including 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, 14kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc, all under UL489 standards. The trip unit type is thermal-magnetic (adjustable) without a display, and it falls under utilisation category A.

Product Details

  • Magnetic Hold Current
    875 A
  • Depth
    5 in (127.00 mm)
  • Magnetic Tripping Current
    1750 A
  • Product Or Component Type
    Circuit breaker
  • Width
    4.12 in (104.65 mm)
  • Height
    7.52 in (191.01 mm)
  • Number Of Poles
    3P
  • Breaking Capacity Code
    D
  • Continuous Current Rating
    100 %
  • Tightening Torque
    230.12 lbf.in (26 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 4...AWG 4/0)
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of JDL36175C on Powermatic Associates is $3,276.00. Order now.
