Part#:JGL36175SA

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

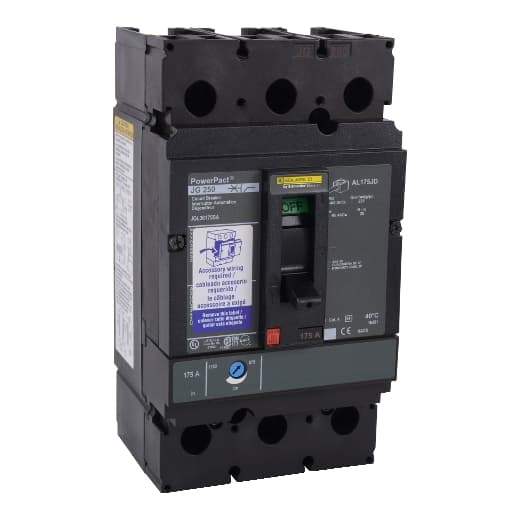

Schneider Electric - JGL36175SA

Product Details

  • Height
    7.52 in (191.01 mm)
  • Depth
    5 in (127.00 mm)
  • Number Of Poles
    3P
  • Breaking Capacity Code
    G
  • Magnetic Hold Current
    875 A
  • Product Or Component Type
    Circuit breaker
  • Width
    4.12 in (104.65 mm)
  • Tightening Torque
    230.12 lbf.in (26 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 4...AWG 4/0)
  • Magnetic Tripping Current
    1750 A
  • Continuous Current Rating
    80 %
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of JGL36175SA on Powermatic Associates is $4,496.00. Order now.
