Part#:JGL36250U43X

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

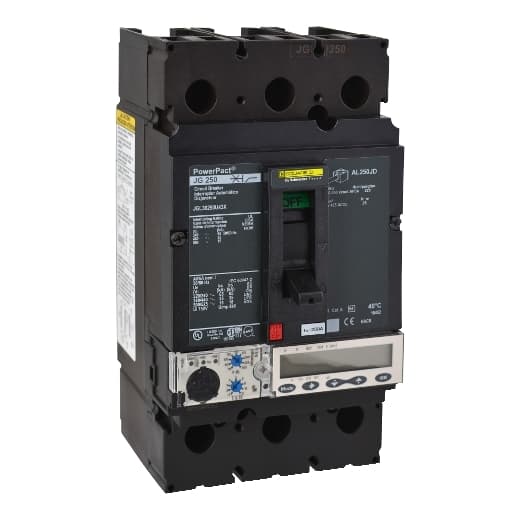

Square D by Schneider Electric JGL36250U43X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT JGL sub-range, featuring a PowerPact J-Frame 250 Micrologic 5.2A (LSI) design. It is a 3-pole (3P) device with a rated current of 250A and a rated insulation voltage (Ui) of 750V. The rated voltage for AC is 600Vac 600Y/347Vac, and for DC, it is 500Vdc. This unit is designed for individual unit mount on plate, with a net height of 191 mm, width of 105 mm, and depth of 127 mm. It offers a degree of protection of IP40 and operates with a toggle (manual) mode. The protection functions include Long-time (L), Short-time with fixed time delay (S), Instantaneous (I), and Zone Selective Interlocking (ZSI). Protection settings are adjustable, with L protection against overload adjustable from 0.3 to 1 x In (70A to 250A), S protection against short-circuit with time delay adjustable from 1.5 to 10 x Ir (375A to 2500A), and I protection against short-circuit adjustable from 1.5 to 12 x In (375A to 3000A). The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 250 AT, and the frame current rating is 250 AF. The short circuit breaking rating varies with voltage, up to 65kA at 240Vac according to UL489 standards. The trip unit features an electronic Micrologic Ammeter 5.2A (LSI) with an LCD display, offering current measurements for phases and neutral, RMS instantaneous current, current unbalance between phases, highest RMS current of the 3 phases, ground fault current, and demand/peak current values with an adjustable calculation window of 5-60min. The utilisation category is A, and it includes lugs on both load and line sides for connection.

Product Details

  • Breaking Capacity Code
    G
  • Number Of Poles
    3P
  • Continuous Current Rating
    80 %
  • Height
    7.52 in (191.01 mm)
  • Width
    4.12 in (104.65 mm)
  • Tightening Torque
    230.12 lbf.in (26 N.m) 0.15…0.29 in² (95…185 mm²) (AWG 3/0...350 kcmil)
  • Product Or Component Type
    Circuit breaker
  • Depth
    5 in (127.00 mm)
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of JGL36250U43X on Powermatic Associates is $5,124.00. Order now.
