JLL36200LY Schneider Electric Industrial Automation Components

JLL36200LY on Powermatic Associates
Schneider Electric

Part#:JLL36200LY

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

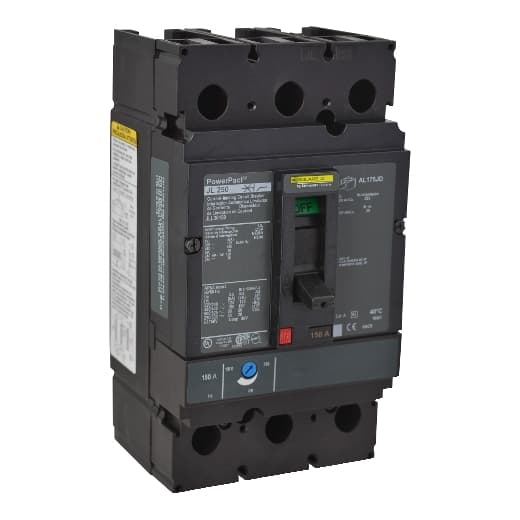

Schneider Electric - JLL36200LY

Product Details

  • Magnetic Tripping Current
    2000 A
  • Width
    4.12 in (104.65 mm)
  • Product Or Component Type
    Circuit breaker
  • Magnetic Hold Current
    1000 A
  • Depth
    5 in (127.00 mm)
  • Breaking Capacity Code
    L
  • Continuous Current Rating
    80 %
  • Number Of Poles
    3P
  • Height
    7.52 in (191.01 mm)
  • Tightening Torque
    230.12 lbf.in (26 N.m) 0.15…0.29 in² (95…185 mm²) (AWG 3/0...350 kcmil)
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of JLL36200LY on Powermatic Associates is $7,086.00. Order now.
