Part#:JLL37250D82

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

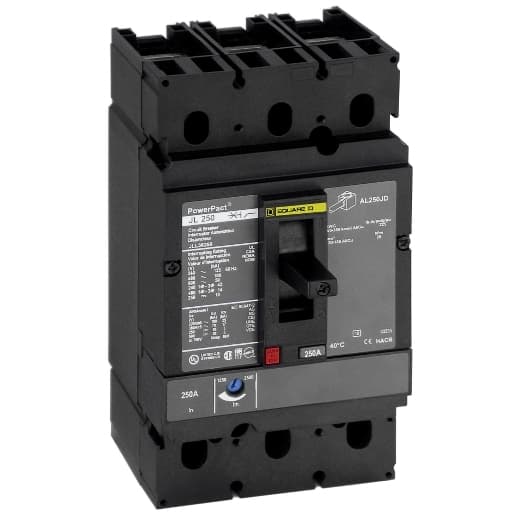

Circuit breaker, PowerPacT J, unit mount, thermal-magnetic, 250A, 3 pole 50 kA, 500 VDC

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Width
    4.12 in (104.65 mm)
  • Height
    7.52 in (191.01 mm)
  • Breaking Capacity Code
    L
  • Depth
    5 in (127.00 mm)
  • Magnetic Tripping Current
    500…850 A
  • Magnetic Hold Current
    500 A
  • Product Or Component Type
    Circuit breaker
  • Number Of Poles
    3P

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
