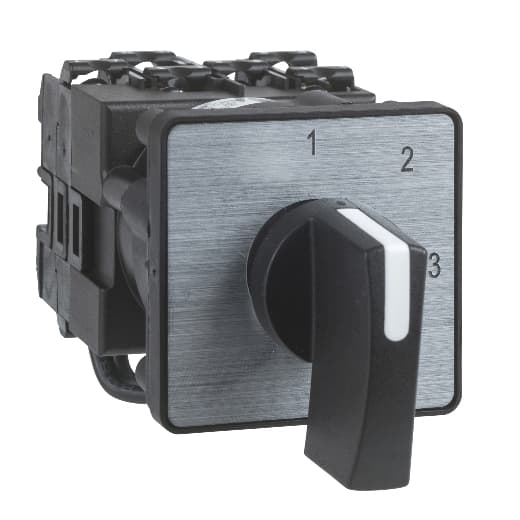

K2C003HLH Schneider Electric Industrial Automation Components

Product Details

• Fixing Mode
  Multifixing
• Mechanical Durability
  1000000 cycles
• CAD Overall Height
  1.77 in (45 mm)
• Cam Switch Function
  Switch
• Short-Circuit Protection
  20 A cartridge fuse gG
• Product Or Component Type
  Complete cam switch
• Switching Angle
  90 °
• Component Name
  K2
• Return
  Without
• [Ithe] Conventional Enclosed Thermal Current
  16 A
• Contact Operation
  Slow-break
• Cam Switch Head Type
  With front plate 45 x 45 mm
• Presentation Of Legend
  With metallic legend, 0 - 1 black marking
• Range Of Product
  Harmony K
• Mounting Location
  Front
• CAD Overall Width
  1.77 in (45 mm)
• [Ith] Conventional Free Air Thermal Current
  20 A
• Short-Circuit Current
  10000 A
• Rotary Handle Padlocking
  Without
• Poles Description
  3P
[Ui] Rated Insulation Voltage
690 V 3)IEC 60947-1
Net Weight
0.30 lb(US) (0.135 kg)
Positive Opening
With
Type Of Operator
Black handle 1.38 in (35 mm)
Off Position
With Off position
Switching Positions
Right: 0° - 90°
CAD Overall Depth
3.43 in (87 mm)
[Uimp] Rated Impulse Withstand Voltage
4 kV in isolating function 6 kV IEC 60947-1
IP Degree Of Protection
IP40 conforming to IEC 529 IP40 conforming to NF C 20-010
Electrical Connection
Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm² Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²
Maximum Operating Rate
2.5 cyc/mn AC-21 2.5 cyc/mn AC-23 2.5 cyc/mn AC-3 8.333 cyc/mn AC-15
Electrical Durability
200000 cycles AC-23 200000 cycles AC-3 600000 cycles AC-15 600000 cycles AC-21
