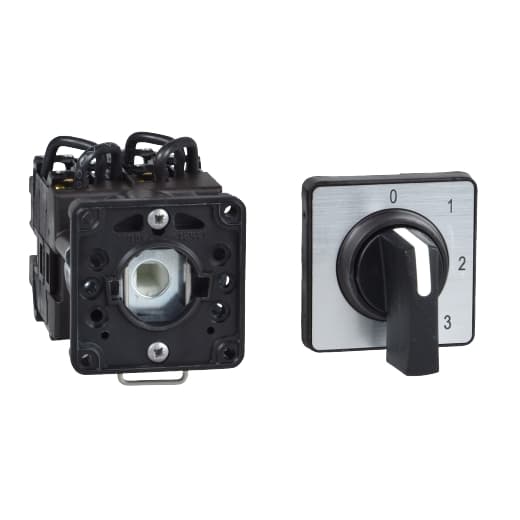

K2F006ACH Schneider Electric Industrial Automation Components

Product Details

• Cam Switch Head Type
  With front plate 45 x 45 mm
• Range Of Product
  Harmony K
• Off Position
  With Off position
• Short-Circuit Protection
  20 A cartridge fuse gG
• CAD Overall Width
  1.77 in (45 mm)
• Component Name
  K2
• Switching Positions
  Right: 0° - 45°
• Type Of Operator
  Black handle 1.38 in (35 mm)
• CAD Overall Height
  1.97 in (50 mm)
• Product Or Component Type
  Complete cam switch
• Presentation Of Legend
  With metallic legend, 0 - 1 black marking
• Rotary Handle Padlocking
  Without
• [Ithe] Conventional Enclosed Thermal Current
  16 A
• Net Weight
  0.41 lb(US) (0.188 kg)
• Return
  Without
• Short-Circuit Current
  10000 A
• [Ith] Conventional Free Air Thermal Current
  20 A
• Cam Switch Function
  Switch
• Mounting Location
  Front
• [Ui] Rated Insulation Voltage
  690 V 3)IEC 60947-1
CAD Overall Depth
2.72 in (69 mm)
Fixing Mode
Ø 22 mm hole
Contact Operation
Slow-break
Switching Angle
45 °
Poles Description
6P
Mechanical Durability
1000000 cycles
Positive Opening
With
IP Degree Of Protection
IP65 conforming to IEC 529 IP65 conforming to NF C 20-010
[Uimp] Rated Impulse Withstand Voltage
4 kV in isolating function 6 kV IEC 947-1
Electrical Connection
Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm² Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²
Maximum Operating Rate
2.5 cyc/mn AC-21 2.5 cyc/mn AC-23 2.5 cyc/mn AC-3 8.333 cyc/mn AC-15
Electrical Durability
200000 cycles AC-23 200000 cycles AC-3 600000 cycles AC-15 600000 cycles AC-21
