LAL36300MB Schneider Electric Industrial Automation Components

LAL36300MB on Powermatic Associates
Schneider Electric

Part#:LAL36300MB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

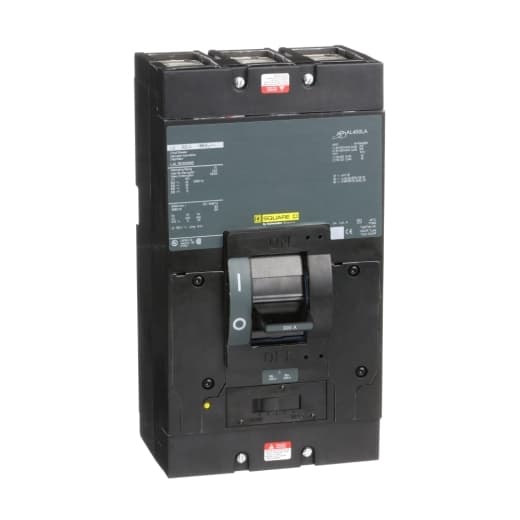

Schneider Electric - LAL36300MB

Product Details

  • Trip Unit Technology
    Thermal-magnetic
  • Height
    11 in (279.40 mm)
  • Product Or Component Type
    Circuit breaker
  • Operator
    Short lever
  • Mounting Mode
    Unit mount
  • Width
    6 in (152.40 mm)
  • Magnetic Hold Current
    1500 A
  • Depth
    5.84 in (148.34 mm)
  • Number Of Poles
    3P
  • Magnetic Tripping Current
    3000 A
  • Terminal Identifier
    AL400LA
  • Line Rated Current
    300 A
  • Electrical Connection
    Lugs load Lugs line
  • Tightening Torque
    115.06 lbf.in (13 N.m) 0.07…0.47 in² (42…304 mm²) (AWG 1...600 kcmil) 115.06 lbf.in (13 N.m) 0.07…0.20 in² (42…127 mm²) (AWG 1...250 kcmil)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LAL36300MB on Powermatic Associates is $4,619.00. Order now.

LAL36300MB Related Documents

Product Datasheet-1631038746790.pdfInstruction Sheet-1631038746793.pdf
