LC1D253E7 Schneider Electric Industrial Automation Components

LC1D253E7 on Powermatic Associates
Schneider Electric

Part#:LC1D253E7

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

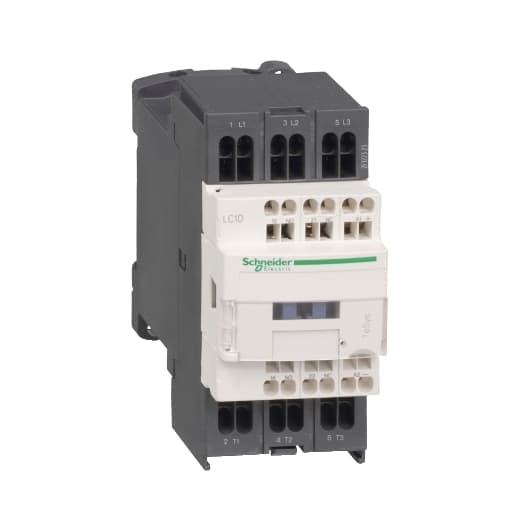

Schneider Electric LC1D253E7 is a magnetic contactor from the Deca sub-range, featuring spring connections and designed with 3 poles (3P; 3NO). It has a rated current of 25A for both AC-1 and AC-3 (440Vac) applications. This contactor is suitable for DIN rail mounting and has a net width of 45 mm. It offers a degree of protection of IP20 and operates with a control voltage (AC) range of 38.4-52.8Vac (48Vac nominal; 50Hz; 0.8...1.1 x Uc) and 40.8-52.8Vac (48Vac nominal; 60Hz; 0.85...1.1 x Uc). The rated operating voltage (Ue) is up to 690 V, and it includes 1 Normally Open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 6 kV. Its rated active power ranges from 5.5kW at 220-230Vac to 15kW at 660-690Vac in AC-3 category. It also features 1 Normally Closed (NC) auxiliary contact and instantaneous auxiliary contacts type of 1NO+1NC. The rated power (HP) varies from 2HP at 115Vac in single-phase to 20HP at 575-600Vac in three-phase applications, according to UL/CSA standards. The mechanical durability of the LC1D253E7 is rated at 15 million operations at no load, and its electrical durability is rated at 1.6 million operations with load. The rated voltage (AC) for phase-to-phase applications is 690 V.

Product Details

  • Power Pole Contact Composition
    3 NO
  • [Uc] Control Circuit Voltage
    48 V AC 50/60 Hz
  • Range
    TeSys
  • Mechanical Durability
    15 Mcycles
  • Minimum Switching Current
    5 mA signalling circuit
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • Rated Breaking Capacity
    450 A 440 V power circuit IEC 60947
  • Insulation Resistance
    > 10 MOhm signalling circuit
  • Overvoltage Category
    III
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Product Or Component Type
    Contactor
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • Front Cover
    With
  • Control Circuit Type
    AC 50/60 Hz
  • Product Name
    TeSys D
  • Heat Dissipation
    2…3 W 50/60 Hz
  • Device Short Name
    LC1D
  • Coil Technology
    Without built-in suppressor module
  • Signalling Circuit Frequency
    25...400 Hz
  • Average Impedance
    2 mOhm - Ith 25 A 50 Hz power circuit
  • Minimum Switching Voltage
    17 V signalling circuit
  • Poles Description
    3P
  • Power Dissipation Per Pole
    3.2 W AC-1 1.25 W AC-3
  • [Ie] Rated Operational Current
    25 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit 40 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
  • [Ith] Conventional Free Air Thermal Current
    25 A 140 °F (60 °C) power circuit 10 A 140 °F (60 °C) signalling circuit
  • Inrush Power In VA
    70 VA 60 Hz 0.75 68 °F (20 °C)) 70 VA 50 Hz 0.75 68 °F (20 °C))
  • [Ue] Rated Operational Voltage
    Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
  • Mounting Support
    Rail Plate
  • Auxiliary Contacts Type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  • Electrical Durability
    1.65 Mcycles 25 A AC-3 <= 440 V 1.4 Mcycles 40 A AC-1 <= 440 V
  • Operating Time
    12...22 ms closing 4...19 ms opening
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • Contactor Application
    Resistive load Motor control
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Hold-In Power Consumption In VA
    7.5 VA 60 Hz 0.3 68 °F (20 °C)) 7 VA 50 Hz 0.3 68 °F (20 °C))
  • Utilisation Category
    AC-4 AC-3 AC-1
  • Irms Rated Making Capacity
    140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 450 A 440 V power circuit IEC 60947
  • Associated Fuse Rating
    10 A gG signalling circuit IEC 60947-5-1 63 A gG <= 690 V type 1 power circuit 40 A gG <= 690 V type 2 power circuit
  • Control Circuit Voltage Limits
    0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
  • Connections - Terminals
    Control circuit spring terminals 1 0.00 in² (2.5 mm²)flexible without cable end Control circuit spring terminals 2 0.00 in² (2.5 mm²)flexible without cable end Power circuit spring terminals 1 0.01 in² (4 mm²)flexible without cable end Powe
  • Motor Power HP (UL / CSA)
    3 hp 230/240 V at AC 50/60 Hz for 1 phase 2 hp 115 V at AC 50/60 Hz for 1 phase 7.5 hp 230/240 V at AC 50/60 Hz for 3 phase 15 hp 460/480 V at AC 50/60 Hz for 3 phase 20 hp 575/600 V at AC 50/60 Hz for 3 phase 7.5 hp 200/208 V at
  • Standards
    CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
  • [Ui] Rated Insulation Voltage
    Power circuit 690 V IEC 60947-4-1 Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL
  • [Icw] Rated Short-Time Withstand Current
    240 A 104 °F (40 °C) - 10 s power circuit 380 A 104 °F (40 °C) - 1 s power circuit 50 A 104 °F (40 °C) - 10 min power circuit 120 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circ
  • Motor Power Kw
    5.5 kW 220...230 V AC 50/60 Hz AC-3) 11 kW 380...400 V AC 50/60 Hz AC-3) 11 kW 415...440 V AC 50/60 Hz AC-3) 15 kW 500 V AC 50/60 Hz AC-3) 15 kW 660...690 V AC 50/60 Hz AC-3) 5.5 kW 400 V AC 50/60 Hz AC-4)
  • Product Certifications
    DNV UL CCC LROS (Lloyds register of shipping) GL CSA RINA GOST BV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1D253E7 on Powermatic Associates is $179.39. Order now.

LC1D253E7 Related Documents

Instruction Sheet-1631039030247.pdfProduct Datasheet-1631039030250.pdf
