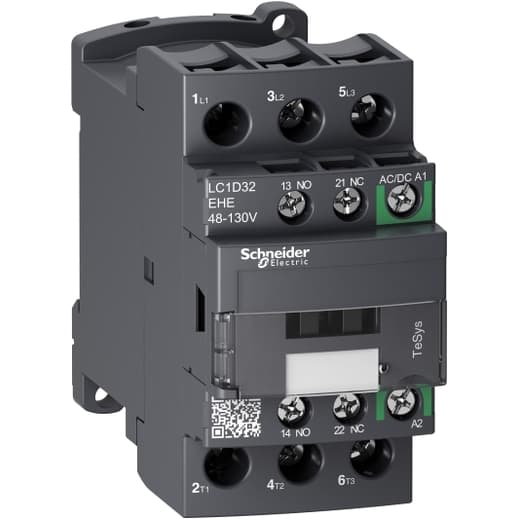

LC1D32EHE Schneider Electric Industrial Automation Components

Product Details

• Product Certifications
  CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping)
• [Icw] Rated Short-Time Withstand Current
  100 A - 1 s signalling circuit 120 A - 500 ms signalling circuit 140 A - 100 ms signalling circuit 60 A 104 °F (40 °C) - 10 min power circuit 138 A 104 °F (40 °C) - 1 min power circuit 260 A 104 °F (40 °C) - 10 s power circuit

• Motor Power HP (UL / CSA)
  2 hp 115 V at AC 60 Hz for 1 phase 5 hp 230/240 V at AC 60 Hz for 1 phase 10 hp 200/208 V at AC 60 Hz for 3 phase 10 hp 230/240 V at AC 60 Hz for 3 phase 20 hp 460/480 V at AC 60 Hz for 3 phase 25 hp 575/600 V at AC 60 Hz for 3 ph
• Motor Power Kw
  7.5 kW 220...230 V AC 50 Hz AC-3) 15 kW 380...400 V AC 50 Hz AC-3) 15 kW 415 V AC 50 Hz AC-3) 15 kW 440 V AC 50 Hz AC-3) 18.5 kW 500 V AC 50 Hz AC-3) 18.5 kW 660...690 V AC 50 Hz AC-3)
• Tightening Torque
  Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals flat Ø 6 mm Power circuit 22.13 lb
• Standards
  EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
• Control Circuit Voltage Limits
  <= 0.1 Uc -40…158 °F (-40…70 °C) drop-out AC/DC 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC/DC 1...1.1 Uc 140…158 °F (60…70 °C) operational AC/DC
• Associated Fuse Rating
  10 A gG signalling circuit IEC 60947-5-1 63 A gG <= 690 V type 1 power circuit 63 A gG <= 690 V type 2 power circuit
• Connections - Terminals
  Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)fl
• Irms Rated Making Capacity
  140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 550 A 440 V power circuit IEC 60947
• Auxiliary Contacts Type
  Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
• Safety Reliability Level
  B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
• Mounting Support
  Plate Rail
• [Ie] Rated Operational Current
  32 A 140 °F (60 °C)) <= 440 V AC-3 power circuit 50 A 140 °F (60 °C)) <= 440 V AC-1 power circuit
• [Uc] Control Circuit Voltage
  48...130 V AC 50/60 Hz 48...130 V DC
• Power Dissipation Per Pole
  2 W AC-3 5 W AC-1
• [Ui] Rated Insulation Voltage
  Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1
• Contactor Application
  Motor control Resistive load
• Electrical Durability
  2.1 Mcycles 29 A AC-3 <= 440 V 0.9 Mcycles 50 A AC-1 <= 440 V
• Operating Time
  45...55 ms closing 20...90 ms opening
Non-Overlap Time
1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
[Ith] Conventional Free Air Thermal Current
10 A 140 °F (60 °C) signalling circuit 50 A 140 °F (60 °C) power circuit
Utilisation Category
AC-1 AC-3
Minimum Switching Current
5 mA signalling circuit
Heat Dissipation
0.8 W 50/60 Hz
Insulation Resistance
> 10 MOhm signalling circuit
Inrush Power In W
24 W 68 °F (20 °C)
Maximum Operating Rate
3600 cyc/h 140 °F (60 °C)
Minimum Switching Voltage
17 V signalling circuit
Signalling Circuit Frequency
25...400 Hz
Hold-In Power Consumption In W
0.8 W 68 °F (20 °C)
Hold-In Power Consumption In VA
1.3 VA 68 °F (20 °C)) 50/60 Hz
Mechanical Durability
15 Mcycles
Inrush Power In VA
25 VA 50/60 Hz 68 °F (20 °C))
Coil Technology
Built-in bidirectional peak limiting
Front Cover
With
Average Impedance
2 mOhm - Ith 50 A 50 Hz power circuit
Rated Breaking Capacity
550 A 440 V power circuit IEC 60947
Overvoltage Category
III
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947
Coil Type
AC/DC electronic
Auxiliary Contact Composition
1 NO + 1 NC
[Ue] Rated Operational Voltage
Power circuit <= 690 V AC 25...400 Hz
Poles Description
3P
Power Pole Contact Composition
3 NO
Device Short Name
LC1D
Product Or Component Type
Contactor
Range
TeSys
Product Name
TeSys D Green
