LC1D40008E7 Schneider Electric Industrial Automation Components

LC1D40008E7 on Powermatic Associates
Schneider Electric

Part#:LC1D40008E7

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

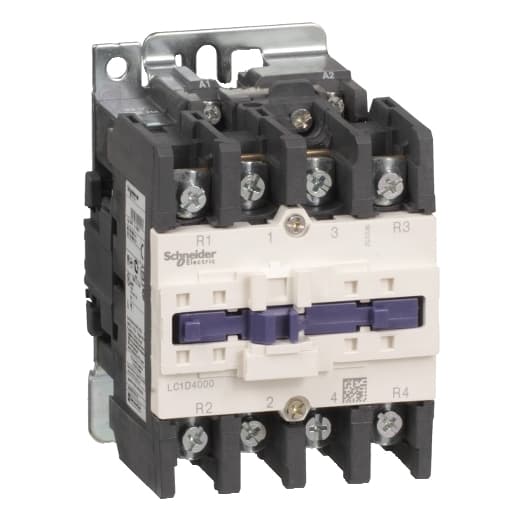

Schneider Electric LC1D40008E7 is a Deca range magnetic contactor featuring screw connections and a 4-pole (2NO+2NC) configuration. It is designed for a rated current of 60A under AC-1 conditions and can be mounted on a DIN rail. The contactor has a net width of 85 mm and offers an IP20 degree of protection. It operates with a control voltage (AC) range of 38.4-52.8Vac at 50Hz and 40.8-52.8Vac at 60Hz, with a nominal control voltage of 48Vac. The rated operating voltage (Ue) is up to 690 V, and it has no normally open (NO) or normally closed (NC) auxiliary contacts. The rated impulse voltage (Uimp) is 6 kV, and it boasts a mechanical durability of 15 million operations at no load. The rated voltage (AC) for phase-to-phase applications is 690 V.

Product Details

  • Product Certifications
    CCC CSA BV UL DNV RINA LROS (Lloyds register of shipping) GOST GL
  • Standards
    CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
  • Control Circuit Voltage Limits
    0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
  • [Icw] Rated Short-Time Withstand Current
    320 A 104 °F (40 °C) - 10 s power circuit 720 A 104 °F (40 °C) - 1 s power circuit 72 A 104 °F (40 °C) - 10 min power circuit 165 A 104 °F (40 °C) - 1 min power circuit
  • Connections - Terminals
    Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)fle
  • [Ui] Rated Insulation Voltage
    Power circuit 600 V CSA Power circuit 600 V UL Power circuit 690 V IEC 60947-4-1
  • Tightening Torque
    Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 70.81 lbf.in (8 N.m) screw clamp terminals 0.04…0.05 in² (25…35 mm²) hexagonal 0.16
  • Inrush Power In VA
    140 VA 60 Hz 0.75 68 °F (20 °C)) 160 VA 50 Hz 0.75 68 °F (20 °C))
  • Hold-In Power Consumption In VA
    13 VA 60 Hz 0.3 68 °F (20 °C)) 15 VA 50 Hz 0.3 68 °F (20 °C))
  • Mounting Support
    Rail Plate
  • Operating Time
    4...19 ms opening 12...26 ms closing
  • Associated Fuse Rating
    80 A gG <= 690 V type 1 power circuit 80 A gG <= 690 V type 2 power circuit
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • [Ue] Rated Operational Voltage
    Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
  • Coil Technology
    Without built-in suppressor module
  • Electrical Durability
    1.4 Mcycles 60 A AC-1 <= 440 V
  • [Ie] Rated Operational Current
    60 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
  • [Ith] Conventional Free Air Thermal Current
    60 A 140 °F (60 °C) power circuit
  • Rated Breaking Capacity
    800 A 440 V power circuit IEC 60947
  • [Uc] Control Circuit Voltage
    48 V AC 50/60 Hz
  • Poles Description
    4P
  • Range
    TeSys
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Heat Dissipation
    4…5 W 50/60 Hz
  • Mechanical Durability
    6 Mcycles
  • Power Dissipation Per Pole
    5.4 W AC-1
  • Front Cover
    Without
  • Average Impedance
    1.5 mOhm - Ith 60 A 50 Hz power circuit
  • Irms Rated Making Capacity
    800 A 440 V power circuit IEC 60947
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • Overvoltage Category
    III
  • Control Circuit Type
    AC 50/60 Hz
  • Power Pole Contact Composition
    2 NO + 2 NC
  • Utilisation Category
    AC-1
  • Contactor Application
    Resistive load
  • Device Short Name
    LC1D
  • Product Or Component Type
    Contactor
  • Product Name
    TeSys D

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1D40008E7 on Powermatic Associates is $491.83. Order now.
