LC1D80008P7 Schneider Electric Industrial Automation Components

LC1D80008P7 on Powermatic Associates
Schneider Electric

Part#:LC1D80008P7

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

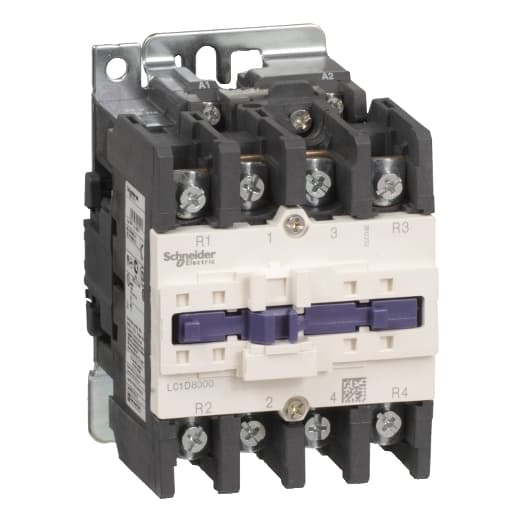

Schneider Electric LC1D80008P7 is a magnetic contactor from the Deca sub-range, designed with screw connections and featuring 4 poles (2NO+2NC). It has a rated current of 125A (AC-1) and is suitable for DIN rail mounting. The net width of the part is 96 mm, and it offers a degree of protection of IP20. The control voltage (AC) ranges from 184-253Vac (230Vac nominal; 50Hz; 0.8...1.1 x Uc) to 195.5-253Vac (230Vac nominal; 60Hz; 0.85...1.1 x Uc), with a rated operating voltage (Ue) of 1000 V. This contactor has no Normally Open (NO) or Normally Closed (NC) auxiliary contacts. It is capable of withstanding a rated impulse voltage (Uimp) of 8 kV and has a mechanical durability of 4,000,000 operations at no load. The rated voltage (AC) phase-to-phase is 1000 V.

Product Details

  • Product Certifications
    LROS (Lloyds register of shipping) DNV CSA RINA GOST CCC BV GL UL
  • Standards
    CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
  • Control Circuit Voltage Limits
    0.85...1.1 Uc -40…131 °F (-40…55 °C) operational AC 60 Hz 0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…131 °F (-40…55 °C) operational AC 50 Hz 1...1.1 Uc 131…158 °F (55…70 °C) operational AC 50/60 Hz
  • [Icw] Rated Short-Time Withstand Current
    640 A 104 °F (40 °C) - 10 s power circuit 990 A 104 °F (40 °C) - 1 s power circuit 135 A 104 °F (40 °C) - 10 min power circuit 320 A 104 °F (40 °C) - 1 min power circuit
  • Tightening Torque
    Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2 Power circuit 106.21 lbf.in (12 N.m) connector flat Ø 6 to Ø 8 mm Power circuit 106.21 lbf.in
  • Connections - Terminals
    Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flex
  • [Ui] Rated Insulation Voltage
    Power circuit 600 V CSA Power circuit 600 V UL Power circuit 1000 V IEC 60947-4-1
  • Hold-In Power Consumption In VA
    26 VA 60 Hz 0.3 68 °F (20 °C)) 26 VA 50 Hz 0.3 68 °F (20 °C))
  • Operating Time
    20...35 ms closing 6...20 ms opening
  • Associated Fuse Rating
    200 A gG <= 690 V type 1 power circuit 160 A gG <= 690 V type 2 power circuit
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Mounting Support
    Plate Rail
  • Inrush Power In VA
    245 VA 60 Hz 0.75 68 °F (20 °C)) 245 VA 50 Hz 0.75 68 °F (20 °C))
  • [Ue] Rated Operational Voltage
    Power circuit <= 300 V DC 25...400 Hz Power circuit <= 690 V AC
  • Heat Dissipation
    6…10 W 50/60 Hz
  • Control Circuit Type
    AC 50/60 Hz
  • Contactor Application
    Resistive load
  • Mechanical Durability
    4 Mcycles
  • Coil Technology
    Without built-in suppressor module
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Front Cover
    Without
  • Average Impedance
    0.8 mOhm - Ith 125 A 50 Hz power circuit
  • Electrical Durability
    0.8 Mcycles 125 A AC-1 <= 440 V
  • Power Dissipation Per Pole
    12.5 W AC-1
  • [Ith] Conventional Free Air Thermal Current
    125 A 140 °F (60 °C) power circuit
  • Overvoltage Category
    III
  • Rated Breaking Capacity
    1100 A 440 V power circuit IEC 60947
  • Irms Rated Making Capacity
    1100 A 440 V power circuit IEC 60947
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947
  • Utilisation Category
    AC-1
  • Power Pole Contact Composition
    2 NO + 2 NC
  • [Uc] Control Circuit Voltage
    230 V AC 50/60 Hz
  • [Ie] Rated Operational Current
    125 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
  • Poles Description
    4P
  • Device Short Name
    LC1D
  • Product Or Component Type
    Contactor
  • Product Name
    TeSys D
  • Range
    TeSys

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1D80008P7 on Powermatic Associates is $671.80. Order now.
