LC1D806F7 Schneider Electric Industrial Automation Components

LC1D806F7 on Powermatic Associates
Schneider Electric

Part#:LC1D806F7

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

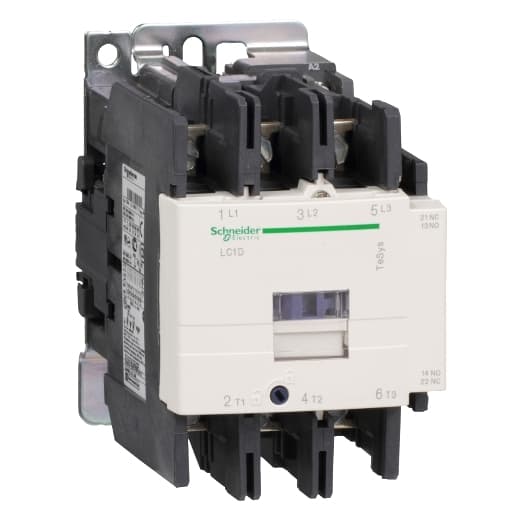

Schneider Electric LC1D806F7 is a magnetic contactor from the Deca sub-range, designed for ring-lugs connections. It features 3 poles (3P; 3NO) and is rated for currents of 125A (AC-1) and 80A (440Vac; AC-3). This contactor is suitable for DIN rail mounting and has a net width of 85 mm. It offers a degree of protection rated at IP20 and operates with a control voltage (AC) range of 88-121Vac (110Vac nominal; 50Hz; 0.8...1.1 x Uc) and 93.5-121Vac (110Vac nominal; 60Hz; 0.85...1.1 x Uc). The rated operating voltage (Ue) is up to 1000 V, and it includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, with a contacts type of 1NO+1NC instantaneous aux. The rated impulse voltage (Uimp) is 8 kV. It supports rated active power (kW) of 22kW (220-230Vac; AC-3) up to 55kW (500Vac; AC-3), and 45kW for voltages ranging from 415Vac to 1000Vac (AC-3). The rated power (HP) spans from 7.5HP at 115Vac to 60HP at 575-600Vac, covering both single-phase and 3-phase applications. Mechanical durability is specified at 4,000,000 operations, and electrical durability at 1,500,000 operations with load. The rated voltage (AC) for phase-to-phase applications is 1000 V.

Product Details

  • Overvoltage Category
    III
  • Signalling Circuit Frequency
    25...400 Hz
  • Front Cover
    With
  • Range
    TeSys
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Coil Technology
    Without built-in suppressor module
  • Product Or Component Type
    Contactor
  • [Uc] Control Circuit Voltage
    110 V AC 50/60 Hz
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • Average Impedance
    0.8 mOhm - Ith 125 A 50 Hz power circuit
  • Product Name
    TeSys D
  • Device Short Name
    LC1D
  • Poles Description
    3P
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947
  • Minimum Switching Voltage
    17 V signalling circuit
  • Control Circuit Type
    AC 50/60 Hz
  • Power Pole Contact Composition
    3 NO
  • Rated Breaking Capacity
    1100 A 440 V power circuit IEC 60947
  • Mechanical Durability
    4 Mcycles
  • Heat Dissipation
    6…10 W 50/60 Hz
  • Insulation Resistance
    > 10 MOhm signalling circuit
  • Minimum Switching Current
    5 mA signalling circuit
  • Mounting Support
    Plate Rail
  • [Ie] Rated Operational Current
    125 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit 80 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit
  • Electrical Durability
    0.8 Mcycles 125 A AC-1 <= 440 V 1.5 Mcycles 80 A AC-3 <= 440 V
  • Operating Time
    20...35 ms closing 6...20 ms opening
  • [Ith] Conventional Free Air Thermal Current
    10 A 140 °F (60 °C) signalling circuit 125 A 140 °F (60 °C) power circuit
  • [Ue] Rated Operational Voltage
    Power circuit <= 300 V DC 25...400 Hz Power circuit <= 690 V AC
  • Power Dissipation Per Pole
    5.1 W AC-3 12.5 W AC-1
  • Contactor Application
    Motor control Resistive load
  • Inrush Power In VA
    245 VA 60 Hz 0.75 68 °F (20 °C)) 245 VA 50 Hz 0.75 68 °F (20 °C))
  • Hold-In Power Consumption In VA
    26 VA 60 Hz 0.3 68 °F (20 °C)) 26 VA 50 Hz 0.3 68 °F (20 °C))
  • Auxiliary Contacts Type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Irms Rated Making Capacity
    140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 1100 A 440 V power circuit IEC 60947
  • Utilisation Category
    AC-3 AC-1 AC-4
  • Associated Fuse Rating
    10 A gG signalling circuit IEC 60947-5-1 200 A gG <= 690 V type 1 power circuit 160 A gG <= 690 V type 2 power circuit
  • Connections - Terminals
    Control circuit lugs-ring terminals 0.31 in (8 mm)) Power circuit bars 1 3 x 16 mm Power circuit lugs-ring terminals 0.67 in (17 mm))
  • Control Circuit Voltage Limits
    0.85...1.1 Uc -40…131 °F (-40…55 °C) operational AC 60 Hz 0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…131 °F (-40…55 °C) operational AC 50 Hz 1...1.1 Uc 131…158 °F (55…70 °C) operational AC 50/60 Hz
  • Tightening Torque
    Control circuit 10.62 lbf.in (1.2 N.m) lugs-ring terminals flat Ø 6 mm M3.5 Control circuit 10.62 lbf.in (1.2 N.m) lugs-ring terminals Philips No 2 M3.5 Power circuit 106.21 lbf.in (12 N.m) lugs-ring terminals flat Ø 8 mm M6 Power circuit 1
  • [Ui] Rated Insulation Voltage
    Power circuit 600 V CSA Power circuit 600 V UL Power circuit 1000 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL
  • Standards
    CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
  • Motor Power HP (UL / CSA)
    20 hp 200/208 V at AC 50/60 Hz for 3 phase 7.5 hp 115 V at AC 50/60 Hz for 1 phase 15 hp 230/240 V at AC 50/60 Hz for 1 phase 25 hp 230/240 V at AC 50/60 Hz for 3 phase 60 hp 460/480 V at AC 50/60 Hz for 3 phase 60 hp 575/600 V at
  • [Icw] Rated Short-Time Withstand Current
    640 A 104 °F (40 °C) - 10 s power circuit 990 A 104 °F (40 °C) - 1 s power circuit 135 A 104 °F (40 °C) - 10 min power circuit 320 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling cir
  • Motor Power Kw
    22 kW 220...230 V AC 50/60 Hz AC-3) 37 kW 380...400 V AC 50/60 Hz AC-3) 45 kW 415...440 V AC 50/60 Hz AC-3) 55 kW 500 V AC 50/60 Hz AC-3) 45 kW 660...690 V AC 50/60 Hz AC-3) 45 kW 1000 V AC 50/60 Hz AC-3) 15 kW 400 V AC 50/60
  • Product Certifications
    GOST LROS (Lloyds register of shipping) CSA RINA DNV CCC BV UL GL

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1D806F7 on Powermatic Associates is $489.61. Order now.

LC1D806F7 Related Documents

Instruction Sheet-1631038118204.pdfProduct Datasheet-1631038118201.pdf
