LC1DT60A3E7 Schneider Electric Industrial Automation Components

LC1DT60A3E7 on Powermatic Associates
Schneider Electric

Part#:LC1DT60A3E7

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

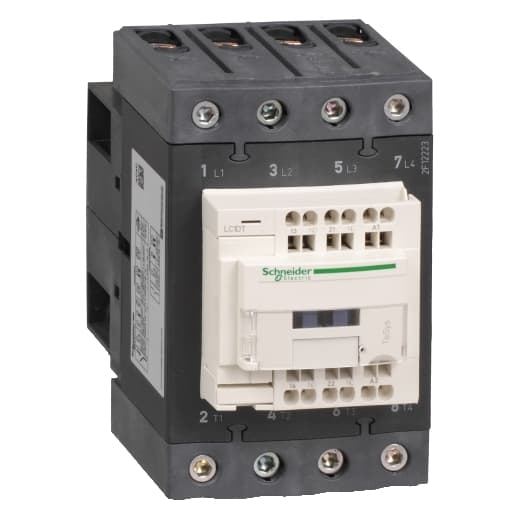

Schneider Electric LC1DT60A3E7 is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminal design for secure connections. It is equipped with spring connections for control and screw connections for power, ensuring a robust installation. This 4-pole (4NO) contactor is designed to handle a rated current of 60A under AC-1 conditions. It offers a convenient DIN rail mounting mode, with a net width of 70 mm and a degree of protection rated at IP20. The control voltage ranges from 38.4-52.8Vac at 50Hz and 40.8-52.8Vac at 60Hz, with a nominal voltage of 48Vac. It includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, both rated for instantaneous operation. The contactor is capable of withstanding a rated impulse voltage (Uimp) of 6 kV and offers a mechanical durability of up to 6 million operations at no load. The rated voltage for phase-to-phase connections is up to 690 V.

Product Details

  • Product Certifications
    GOST GL BV UL RINA LROS (Lloyds register of shipping) DNV CSA CCC
  • [Icw] Rated Short-Time Withstand Current
    320 A 104 °F (40 °C) - 10 s power circuit 720 A 104 °F (40 °C) - 1 s power circuit 72 A 104 °F (40 °C) - 10 min power circuit 165 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circ
  • Standards
    CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
  • [Ui] Rated Insulation Voltage
    Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL Power circuit 690 V IEC 60947-4-1
  • Control Circuit Voltage Limits
    0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
  • Connections - Terminals
    Control circuit spring terminals 1 0.00 in² (2.5 mm²)flexible without cable end Control circuit spring terminals 2 0.00 in² (2.5 mm²)flexible without cable end Power circuit spring clamp terminal 1 0.00…0.05 in² (1…35 mm²)flexible without cable
  • Associated Fuse Rating
    10 A gG signalling circuit IEC 60947-5-1 80 A gG <= 690 V type 1 power circuit 80 A gG <= 690 V type 2 power circuit
  • Irms Rated Making Capacity
    140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 800 A 440 V power circuit IEC 60947
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • [Ue] Rated Operational Voltage
    Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
  • Mounting Support
    Rail Plate
  • Tightening Torque
    Power circuit 70.81 lbf.in (8 N.m) screw clamp terminals 0.04…0.05 in² (25…35 mm²) hexagonal 0.16 in (4 mm) Power circuit 44.25 lbf.in (5 N.m) screw clamp terminals 0.00…0.04 in² (2.5…25 mm²) hexagonal 0.16 in (4 mm)
  • Operating Time
    4...19 ms opening 12...26 ms closing
  • Hold-In Power Consumption In VA
    13 VA 60 Hz 0.3 68 °F (20 °C)) 15 VA 50 Hz 0.3 68 °F (20 °C))
  • Inrush Power In VA
    140 VA 60 Hz 0.75 68 °F (20 °C)) 160 VA 50 Hz 0.75 68 °F (20 °C))
  • Auxiliary Contacts Type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • [Ith] Conventional Free Air Thermal Current
    10 A 140 °F (60 °C) signalling circuit 60 A 140 °F (60 °C) power circuit
  • Insulation Resistance
    > 10 MOhm for signalling circuit
  • Signalling Circuit Frequency
    25...400 Hz
  • Heat Dissipation
    4…5 W 50/60 Hz
  • [Ie] Rated Operational Current
    60 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
  • Poles Description
    4P
  • Minimum Switching Voltage
    17 V signalling circuit
  • Minimum Switching Current
    5 mA signalling circuit
  • Coil Technology
    Without built-in suppressor module
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Mechanical Durability
    6 Mcycles
  • Front Cover
    With
  • Power Dissipation Per Pole
    5.8 W AC-1
  • Electrical Durability
    1.4 Mcycles 60 A AC-1 <= 440 V
  • Average Impedance
    1.6 mOhm - Ith 60 A 50 Hz power circuit
  • Rated Breaking Capacity
    800 A 440 V power circuit IEC 60947
  • Overvoltage Category
    III
  • Control Circuit Type
    AC at 50/60 Hz
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • [Uc] Control Circuit Voltage
    48 V AC 50/60 Hz
  • Device Short Name
    LC1D
  • Product Or Component Type
    Contactor
  • Power Pole Contact Composition
    4 NO
  • Utilisation Category
    AC-1
  • Range
    TeSys
  • Contactor Application
    Resistive load
  • Product Name
    TeSys D

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1DT60A3E7 on Powermatic Associates is $349.63. Order now.

LC1DT60A3E7 Related Documents

Instruction Sheet-1631039034110.pdfProduct Datasheet-1631039034171.pdf
