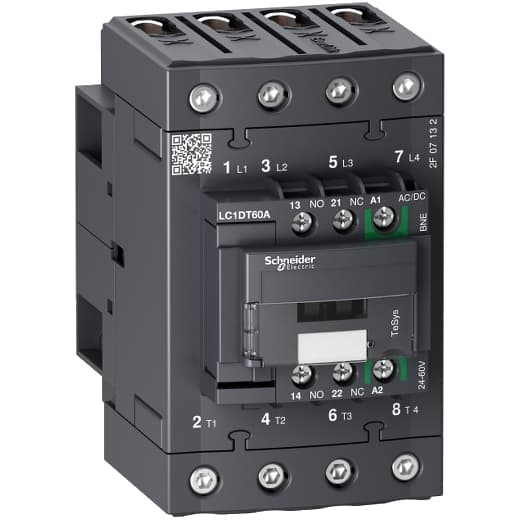

LC1DT60ABBE Schneider Electric Industrial Automation Components

Product Details

• Product Certifications
  CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping)
• [Icw] Rated Short-Time Withstand Current
  72 A 104 °F (40 °C) - 10 min power circuit 165 A 104 °F (40 °C) - 1 min power circuit 320 A 104 °F (40 °C) - 10 s power circuit 720 A 104 °F (40 °C) - 1 s power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circ
• Control Circuit Voltage Limits
  <= 0.1 Uc -40…158 °F (-40…70 °C) drop-out DC 0.8...1.2 Uc -40…140 °F (-40…60 °C) operational DC 1...1.2 Uc 140…158 °F (60…70 °C) operational DC
• Connections - Terminals
  Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)fl
• Standards
  EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
• Associated Fuse Rating
  80 A gG <= 690 V type 1 power circuit 80 A gG <= 690 V type 2 power circuit 10 A gG signalling circuit IEC 60947-5-1
• Irms Rated Making Capacity
  800 A 440 V power circuit IEC 60947 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1
• Safety Reliability Level
  B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
• Auxiliary Contacts Type
  Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
• Operating Time
  55...65 ms closing 20...80 ms opening
• Tightening Torque
  Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 70.81 lbf.in (8 N.m) EverLink BTR screw connectors 0.04…0.05 in² (25…35 mm²) hexagon
• Non-Overlap Time
  1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
• [Ith] Conventional Free Air Thermal Current
  60 A 140 °F (60 °C) power circuit 10 A 140 °F (60 °C) signalling circuit
• [Ui] Rated Insulation Voltage
  Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1
• Mounting Support
  Plate Rail
• Insulation Resistance
  > 10 MOhm for signalling circuit
• Heat Dissipation
  0.5 W
• Minimum Switching Voltage
  17 V signalling circuit
• Minimum Switching Current
  5 mA signalling circuit
• Signalling Circuit Frequency
  25...400 Hz
Inrush Power In W
11 W 68 °F (20 °C)
Hold-In Power Consumption In W
0.5 W 68 °F (20 °C)
Maximum Operating Rate
3600 cyc/h 140 °F (60 °C)
Coil Technology
Built-in bidirectional peak limiting
Mechanical Durability
6 Mcycles
Front Cover
With
Average Impedance
1.6 mOhm - Ith 60 A 50 Hz power circuit
Power Dissipation Per Pole
5.8 W AC-1
Electrical Durability
0.7 Mcycles 60 A AC-1 <= 440 V
Rated Breaking Capacity
800 A 440 V power circuit IEC 60947
Auxiliary Contact Composition
1 NO + 1 NC
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947
Overvoltage Category
III
Coil Type
DC low consumption
[Uc] Control Circuit Voltage
24 V DC
[Ie] Rated Operational Current
60 A 140 °F (60 °C)) <= 440 V AC-1 power circuit
Poles Description
4P
Product Or Component Type
Contactor
Device Short Name
LC1D
[Ue] Rated Operational Voltage
Power circuit <= 690 V AC 25...400 Hz
Contactor Application
Resistive load
Product Name
TeSys D Green
Range
TeSys
Power Pole Contact Composition
4 NO
Utilisation Category
AC-1
