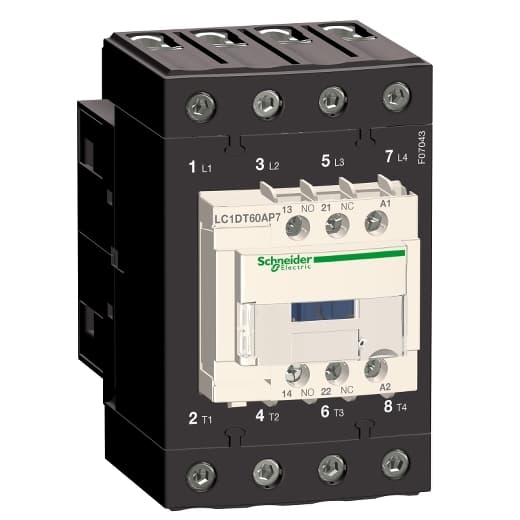

LC1DT60AG7 Schneider Electric Industrial Automation Components

Product Details

• Product Or Component Type
  Contactor
• Overvoltage Category
  III
• Maximum Operating Rate
  3600 cyc/h 140 °F (60 °C)
• Product Name
  TeSys D
• Auxiliary Contact Composition
  1 NO + 1 NC
• Electrical Durability
  1.4 Mcycles 60 A AC-1 <= 440 V
• Heat Dissipation
  4…5 W 60 Hz
• Minimum Switching Current
  5 mA signalling circuit
• [Uc] Control Circuit Voltage
  120 V AC 60 Hz
• Signalling Circuit Frequency
  25...400 Hz
• Range
  TeSys
• Control Circuit Type
  AC 60 Hz
• Power Dissipation Per Pole
  5.8 W AC-1
• Device Short Name
  LC1D
• Rated Breaking Capacity
  800 A 440 V power circuit IEC 60947
• Hold-In Power Consumption In VA
  13 VA 60 Hz 0.3 68 °F (20 °C))
• Poles Description
  4P
• Front Cover
  With
• Coil Technology
  Without built-in suppressor module
• Minimum Switching Voltage
  17 V signalling circuit
Contactor Application
Resistive load
Inrush Power In VA
140 VA 60 Hz 0.75 68 °F (20 °C))
Utilisation Category
AC-1
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947
Average Impedance
1.6 mOhm - Ith 60 A 50 Hz power circuit
[Ie] Rated Operational Current
60 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
Mechanical Durability
6 Mcycles
Insulation Resistance
> 10 MOhm for signalling circuit
Power Pole Contact Composition
4 NO
Auxiliary Contacts Type
Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
[Ith] Conventional Free Air Thermal Current
10 A 140 °F (60 °C) signalling circuit 60 A 140 °F (60 °C) power circuit
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
[Ue] Rated Operational Voltage
Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
Mounting Support
Rail Plate
Operating Time
4...19 ms opening 12...26 ms closing
Non-Overlap Time
1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Associated Fuse Rating
10 A gG signalling circuit IEC 60947-5-1 80 A gG <= 690 V type 1 power circuit 80 A gG <= 690 V type 2 power circuit
Irms Rated Making Capacity
140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 800 A 440 V power circuit IEC 60947
Connections - Terminals
Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)fle
Control Circuit Voltage Limits
0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 60 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 60 Hz
Tightening Torque
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 70.81 lbf.in (8 N.m) screw clamp terminals 0.04…0.05 in² (25…35 mm²) hexagonal 0.16
[Ui] Rated Insulation Voltage
Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL Power circuit 690 V IEC 60947-4-1
Standards
CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
[Icw] Rated Short-Time Withstand Current
320 A 104 °F (40 °C) - 10 s power circuit 720 A 104 °F (40 °C) - 1 s power circuit 72 A 104 °F (40 °C) - 10 min power circuit 165 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circ
Product Certifications
RINA CSA GOST LROS (Lloyds register of shipping) DNV CCC UL GL BV
