LC1DT80AFD Schneider Electric Industrial Automation Components

LC1DT80AFD on Powermatic Associates
Schneider Electric

Part#:LC1DT80AFD

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

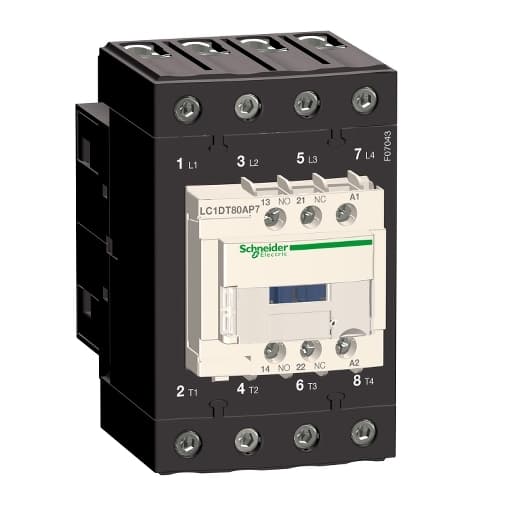

Schneider Electric LC1DT80AFD is a magnetic contactor within the Deca sub-range, featuring an EverLink(TM) terminal design and screw connections for secure installation. This 4-pole (4P; 4NO) contactor is designed to handle a rated current of 80A (AC-1) and can be mounted on a DIN rail. It has a net width of 70 mm and offers a degree of protection rated at IP20. The control voltage for this unit ranges from 82.5-137.5Vdc, with a nominal voltage of 110Vdc, allowing for operation within 0.75 to 1.25 times the control voltage (Uc). It is capable of operating at a rated operating voltage (Ue) of up to 690 V and includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The LC1DT80AFD is designed to withstand rated impulse voltages (Uimp) up to 6 kV and boasts a mechanical durability of 6 million operations at no load, with a phase-to-phase rated voltage (AC) of 690 V.

Product Details

  • Range
    TeSys
  • Average Impedance
    1.6 mOhm - Ith 80 A 50 Hz power circuit
  • Mechanical Durability
    10 Mcycles
  • Minimum Switching Current
    5 mA signalling circuit
  • Contactor Application
    Resistive load
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Power Pole Contact Composition
    4 NO
  • [Uc] Control Circuit Voltage
    110 V DC
  • Front Cover
    With
  • Utilisation Category
    AC-1
  • Control Circuit Type
    DC standard
  • Electrical Durability
    0.5 Mcycles 80 A AC-1 <= 440 V
  • Time Constant
    34 ms
  • Device Short Name
    LC1D
  • Signalling Circuit Frequency
    25...400 Hz
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • Product Name
    TeSys D
  • Rated Breaking Capacity
    1000 A 440 V power circuit IEC 60947
  • Coil Technology
    Built-in bidirectional peak limiting diode suppressor
  • Poles Description
    4P
  • [Ie] Rated Operational Current
    80 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
  • Power Dissipation Per Pole
    10.2 W AC-1
  • Product Or Component Type
    Contactor
  • Overvoltage Category
    III
  • Inrush Power In W
    19 W 68 °F (20 °C))
  • Insulation Resistance
    > 10 MOhm for signalling circuit
  • Hold-In Power Consumption In W
    7.4 W 68 °F (20 °C)
  • Minimum Switching Voltage
    17 V signalling circuit
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • Mounting Support
    Plate Rail
  • [Ue] Rated Operational Voltage
    Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
  • Operating Time
    42.5...57.5 ms closing 16...24 ms opening
  • Auxiliary Contacts Type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  • [Ith] Conventional Free Air Thermal Current
    10 A 140 °F (60 °C) signalling circuit 80 A 140 °F (60 °C) power circuit
  • Irms Rated Making Capacity
    140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 1000 A 440 V power circuit IEC 60947
  • Associated Fuse Rating
    10 A gG signalling circuit IEC 60947-5-1 125 A gG <= 690 V type 1 power circuit 125 A gG <= 690 V type 2 power circuit
  • Connections - Terminals
    Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)fle
  • Tightening Torque
    Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 70.81 lbf.in (8 N.m) screw clamp terminals 0.04…0.05 in² (25…35 mm²) hexagonal 0.16
  • Control Circuit Voltage Limits
    0.1...0.3 Uc -40…158 °F (-40…70 °C) drop-out DC 0.75...1.25 Uc -40…140 °F (-40…60 °C) operational DC 1...1.25 Uc 140…158 °F (60…70 °C) operational DC
  • Standards
    CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
  • [Ui] Rated Insulation Voltage
    Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL Power circuit 690 V IEC 60947-4-1
  • [Icw] Rated Short-Time Withstand Current
    520 A 104 °F (40 °C) - 10 s power circuit 900 A 104 °F (40 °C) - 1 s power circuit 110 A 104 °F (40 °C) - 10 min power circuit 260 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling cir
  • Product Certifications
    RINA UL BV CSA GOST LROS (Lloyds register of shipping) GL CCC DNV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1DT80AFD on Powermatic Associates is $529.66. Order now.

LC1DT80AFD Related Documents

Instruction Sheet-1631037841478.pdfProduct Datasheet-1631037841465.pdf
