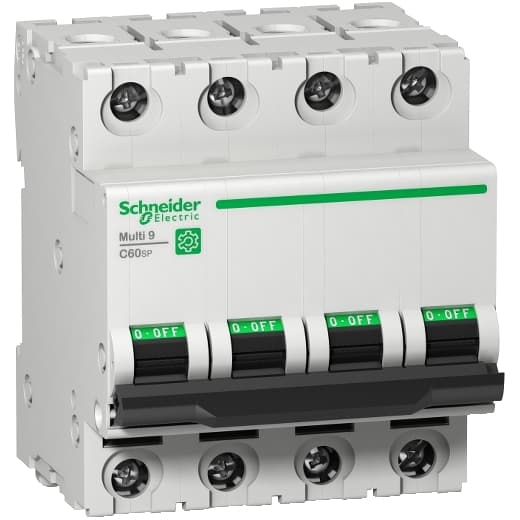

M9F23432 Schneider Electric Industrial Automation Components

Product Details

• Height
  3.19 in (81 mm)
• Depth
  2.83 in (72 mm)
• Poles Description
  4P
• Suitability For Isolation
  Yes EN/IEC 60947-2
• Mounting Support
  DIN rail
• Product Or Component Type
  Miniature circuit-breaker
• Line Rated Current
  32 A 77 °F (25 °C) EN/IEC 60947-2
• Range
  Multi 9
• Width
  2.83 in (72 mm)
• Network Type
  AC
• [Uimp] Rated Impulse Withstand Voltage
  6 kVEN/IEC 60947-2
• Electrical Durability
  10000 cycles
• Product Name
  Multi 9 C60
• Number Of Protected Poles
  4
• Contact Position Indicator
  Yes
• Mechanical Durability
  20000 cycles
• Device Short Name
  C60SP
• Curve Code
  D
• Magnetic Tripping Limit
  12 x In +/- 20 % AC
• 9 Mm Pitches
  8
Control Type
Toggle
Color
Gray
Device Application
Distribution
Local Signalling
ON/OFF indication
Wire Stripping Length
0.55 in (14 mm) top or bottom
Trip Unit Technology
Thermal-magnetic
Mounting Mode
Clip-on
[Ui] Rated Insulation Voltage
500 V AC EN/IEC 60947-2
Tightening Torque
30.98 lbf.in (3.5 N.m) top or bottom
Provision For Padlocking
Padlockable
Earth-Leakage Protection
Without
[Ics] Rated Service Breaking Capacity
4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 15 kA 75 % EN/IEC 60947-2 - 240 V AC 4.5 kA 75 % GB 14048.2 - 440 V AC 7.5 kA 75 % GB 14048.2 - 415 V AC 15 kA 75 % GB 14048.2 - 240 V AC
[Ue] Rated Operational Voltage
240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz
Connections - Terminals
Tunnel type terminal top or bottom) 0.00…0.05 in² (1…35 mm²) AWG 18...AWG 2) - rigid Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 3) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²
Standards
EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235
Product Certifications
IEC CCC UR CSA
Breaking Capacity
14 kA AIR 240 V AC UL 1077 14 kA AIR 240 V AC CSA C22.2 No 235 10 kA AIR 480Y/277 V AC UL 1077 10 kA AIR 480Y/277 V AC CSA C22.2 No 235 6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/
