M9F42240 Schneider Electric Industrial Automation Components
Part#:M9F42240
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

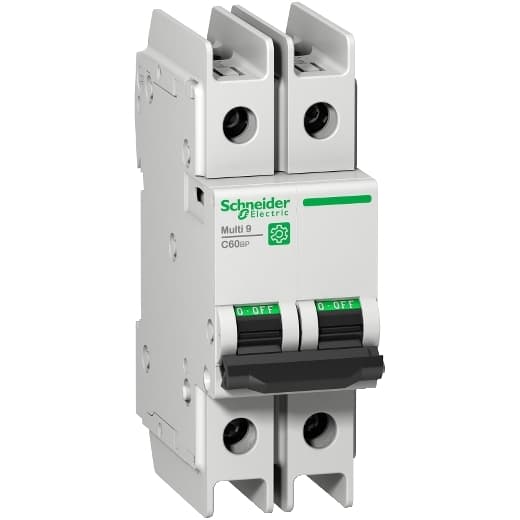

Schneider Electric M9F42240 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designed to provide circuit protection. This MCB features two protected poles and operates with a rated current of 40A. It is engineered to handle a rated insulation voltage (Ui) of 500V, a rated voltage (DC) of 60Vdc, and rated impulse voltage (Uimp) of 6kV. The device offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 60Vdc. For AC circuits, it supports a rated voltage of 240V phase-to-neutral and 415V phase-to-phase. The M9F42240 is equipped with a C tripping curve, ensuring precise protection for connected circuits.
Product Details
- Range Multi 9
- Suitability For Isolation Yes EN/IEC 60947-2
- Control Type Toggle
- Electrical Durability 10000 cycles
- Local Signalling ON/OFF indication
- Number Of Protected Poles 2
- Device Application Distribution
- Contact Position Indicator Yes
- Depth 2.83 in (72 mm)
- Network Type AC
- Provision For Padlocking Padlockable
- Device Short Name C60BP
- Magnetic Tripping Limit 8.5 x In +/- 20 % AC
- Curve Code C
- Product Name Multi 9 C60
- Trip Unit Technology Thermal-magnetic
- Product Or Component Type Miniature circuit-breaker
- Mounting Support DIN rail
- Color Gray
- 9 Mm Pitches 4
- Poles Description 2P
- Line Rated Current 40 A 77 °F (25 °C) EN/IEC 60947-2
- Mechanical Durability 20000 cycles
- Earth-Leakage Protection Without
- Height 4.06 in (103 mm)
- Width 1.42 in (36 mm)
- [Uimp] Rated Impulse Withstand Voltage 6 kVEN/IEC 60947-2
- Wire Stripping Length 0.55 in (14 mm) top or bottom
- Mounting Mode Clip-on
- Tightening Torque 30.98 lbf.in (3.5 N.m) top or bottom
- [Ui] Rated Insulation Voltage 500 V AC EN/IEC 60947-2
- [Ue] Rated Operational Voltage 240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz
- Connections - Terminals Tunnel type terminal top or bottom) 0.00…0.05 in² (1…35 mm²) AWG 18...AWG 2) - rigid Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 3) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²
- Product Certifications IEC CCC CSA UL
- Standards EN/IEC 60947-2 GB 14048.2 UL 489 CSA C22.2 No 5
- [Ics] Rated Service Breaking Capacity 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 15 kA 75 % EN/IEC 60947-2 - 240 V AC 4.5 kA 75 % GB 14048.2 - 440 V AC 7.5 kA 75 % GB 14048.2 - 415 V AC 15 kA 75 % GB 14048.2 - 240 V AC
- Breaking Capacity 6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/IEC 60947-2 6 kA Icu 440 V AC GB 14048.2 10 kA Icu 415 V AC GB 14048.2 20 kA Icu 240 V AC GB 14048.2 10 kA AIR 240 V AC UL 489 10 k
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
