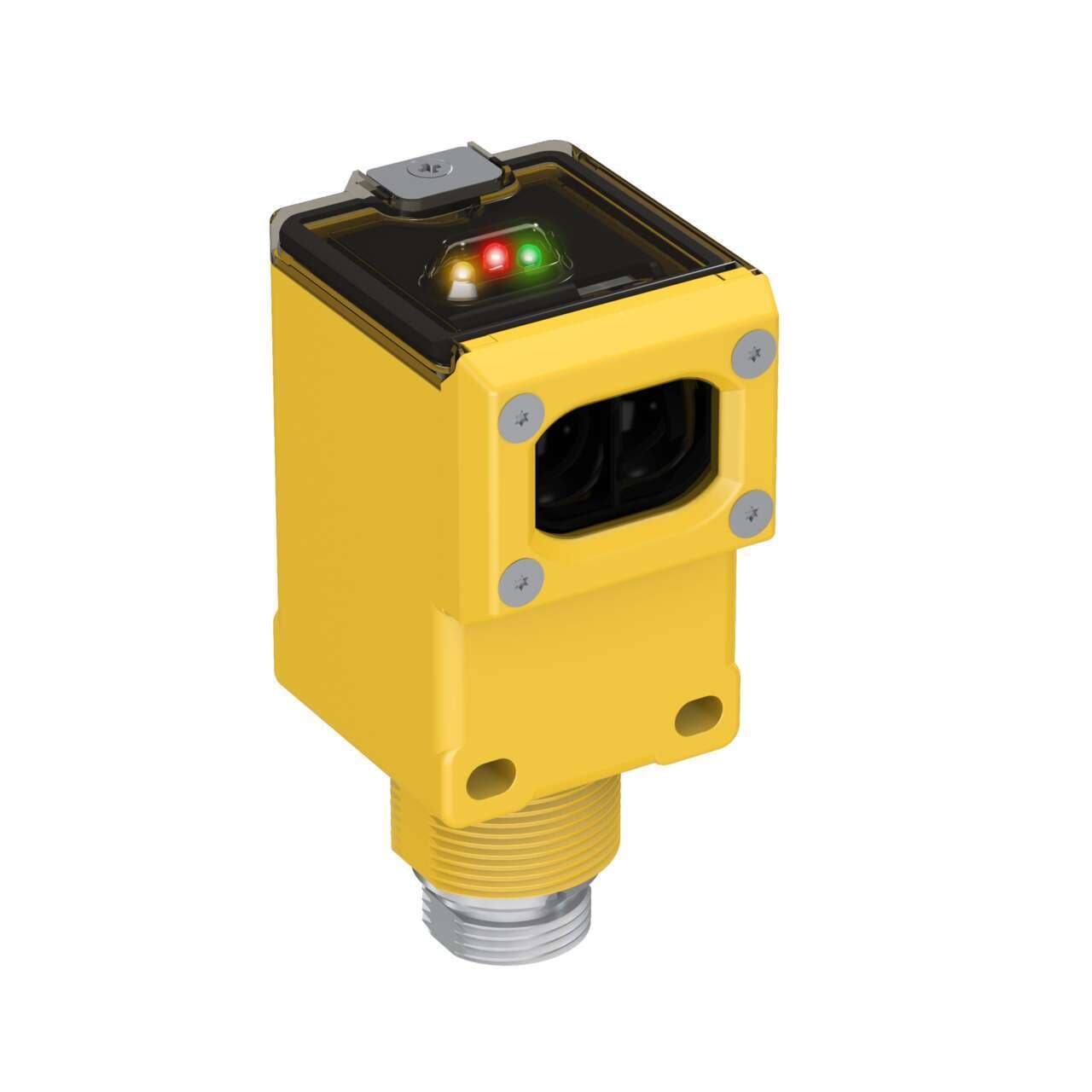

Q45BB6LPQ Banner Proximity Sensors
Part#:Q45BB6LPQ
Alt. Part#:36726
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q45 Series: Polarized Retro; Range: 0.15 -6 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin Mini Integral QD
Product Details
- Weight 255.825888 g
- Country Of Origin US
- Sensing distance 0.15cm...6m
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Compliant with standard(s) cURus cCSAus CE
- Product series / family name Q series
- Design retro-reflective mode
- Light Color Visible red
- Connection type Pre-equipped with 4-pin 7/8" Mini connector
- Response time 2ms / 0.002 s
- Primary brand Banner Engineering
- Functions Polarized photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
- Thread size M30
- Mounting mode Threaded mount
- Material thermoplastic housing Acrylic lns.
- Sub-range name Q45BB6
- Shape Rectangular
- Degree of protection IP67 NEMA 6P
- Order code / Manufacturer SKU 36726
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength 680 nm
- Operating mode Light-ON Dark-ON
- Ambient air temperature for operation -40...+70 °C
- DeviceNet No
- Outputs Bipolar (NPN & PNP)
- Max Op. Temp. (°C) 70
- Special Feature: Water Detection No
- Opposed Mode Emitter/Receiver N/A
- Sensing Mode (General) Retroreflective
- Special Feature: Intrinsically Safe No
- Repeatability (µs) 500
- Feature: Timing (Hold/Delay) Yes
- Power DC
- IP Rating IP67
- NEMA Rating NEMA 6P
- Max Sensing Distance (mm) 6000
- Quick Disconnect Type 7/8 in. (Mini)
- Output response time (ms) 2
- Barrel Diameter (mm) 30
- Feature: Audible No
- Input/Output Discrete
- Connection Integral QD
- Special Feature: Remote Teach No
- Feature: Hazardous Area No
- Primary Housing Material Thermoplastic
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Wavelength 680
- Indicator LEDs
- Feature: Encapsulated No
- Housing Style Rectangular
- Operation Light/Dark Operate
- Adjustments Potentiometer
- IO Link No
- Sensing Beam Visible Red LED
- Number of Pins 4
- Lens Material Acrylic
- Max Op. Relative Humidity [%] 90% @ 50°C
- Sensing Mode (Detailed) Polarized
- Min Op. Temp. (°C) -40
- Delay at Power-up (ms) 100
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45BB6LPQ on Powermatic Associates is $152.00. Order now.
About the product
Banner Engineering Q45BB6LPQ is a polarized photo-electric sensor designed for versatile applications, featuring a retro-reflective mode with potentiometer adjustment. This sensor is equipped with an M30 threaded mount and a pre-equipped 4-pin 7/8" mini connector for easy installation. It operates within an ambient air temperature range of -40 to +70°C and offers a sensing distance of 0.15cm to 6m. The Q45BB6LPQ, part of the Q45BB6 series, is housed in a thermoplastic casing with an acrylic lens and is designed to emit visible red light at a wavelength of 680 nm. It supports both Light-ON and Dark-ON operating modes and provides a single digital output (PNP/NPN transistor) with a rapid response time of 2ms. This sensor is protected against ingress with an IP67 NEMA 6P rating and requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values.
