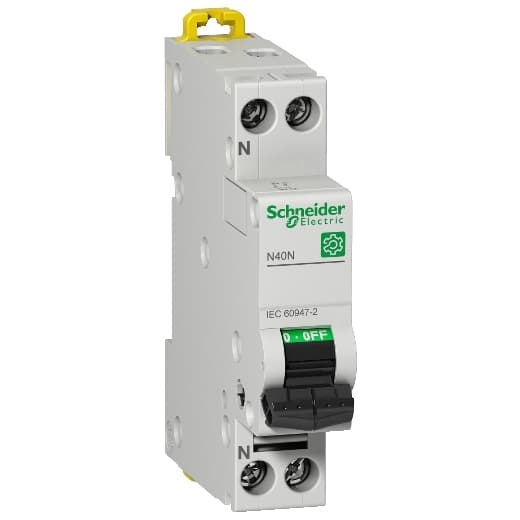

M9P22610 Schneider Electric Industrial Automation Components

Product Details

• Local Signalling
  ON/OFF indication
• Number Of Protected Poles
  1
• Poles Description
  1P + N
• Width
  0.71 in (18 mm)
• Product Name
  Multi 9 N40
• Network Frequency
  50/60 Hz
• Device Application
  Distribution
• Magnetic Tripping Limit
  8.5 x In +/- 20 % AC
• Mounting Support
  DIN rail
• Suitability For Isolation
  Yes conforming to EN/IEC 60947-2
• Provision For Padlocking
  Padlockable
• Device Short Name
  N40N
• Curve Code
  C
• Contact Position Indicator
  Yes
• Net Weight
  0.25 lb(US) (0.115 kg)
• Product Or Component Type
  Miniature circuit-breaker
• Breaking Capacity
  10 kA Icu 240 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2
• Standards
  EN/IEC 60947-2
• 9 Mm Pitches
  2
• Tightening Torque
  17.70 lbf.in (2 N.m) top or bottom
Height
3.19 in (81 mm)
Earth-Leakage Protection
Separate block
[Ue] Rated Operational Voltage
240 V AC 50/60 Hz between phase and neutral
Network Type
AC
[Ics] Rated Service Breaking Capacity
7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz
Control Type
Toggle
Mechanical Durability
20000 cycles
Electrical Durability
20000 cycles
Wire Stripping Length
0.51 in (13 mm) top or bottom
Range
Multi 9
Line Rated Current
10 A 122 °F (50 °C) EN/IEC 60947-2
Limitation Class
3 EN/IEC 60947-2
Mounting Mode
Clip-on
[Ui] Rated Insulation Voltage
500 V AC 50/60 Hz EN/IEC 60947-2
Trip Unit Technology
Thermal-magnetic
Depth
3.07 in (78 mm)
Neutral Position
Left
[Uimp] Rated Impulse Withstand Voltage
4 kVEN/IEC 60947-2
Color
Gray
Connections - Terminals
Tunnel type terminal top or bottom) 0.00…0.02 in² (0.75…16 mm²) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (0.33…10 mm²) - flexible Tunnel type terminal top or bottom) 0.00…0.02 in² (0.33…10 mm²) - flexible with ferrule
