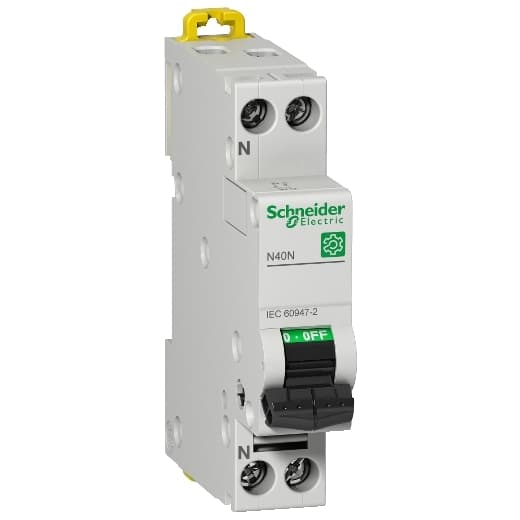

M9P22625 Schneider Electric Industrial Automation Components

Product Details

• Limitation Class
  3 EN/IEC 60947-2
• Depth
  3.07 in (78 mm)
• Earth-Leakage Protection
  Separate block
• Range
  Multi 9
• Trip Unit Technology
  Thermal-magnetic
• [Uimp] Rated Impulse Withstand Voltage
  4 kVEN/IEC 60947-2
• Color
  Gray
• Device Application
  Distribution
• Curve Code
  C
• Breaking Capacity
  10 kA Icu 240 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2
• Local Signalling
  ON/OFF indication
• Electrical Durability
  10000 cycles
• Neutral Position
  Left
• [Ue] Rated Operational Voltage
  240 V AC 50/60 Hz between phase and neutral
• Mounting Support
  DIN rail
• Product Name
  Multi 9 N40
• [Ics] Rated Service Breaking Capacity
  7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz
• Height
  3.19 in (81 mm)
• Number Of Protected Poles
  1
• Standards
  EN/IEC 60947-2
Mounting Mode
Clip-on
Provision For Padlocking
Padlockable
Poles Description
1P + N
Suitability For Isolation
Yes EN/IEC 60947-2
Contact Position Indicator
Yes
Width
0.71 in (18 mm)
Magnetic Tripping Limit
8.5 x In +/- 20 % AC
9 Mm Pitches
2
Wire Stripping Length
0.51 in (13 mm) top or bottom
Line Rated Current
25 A 122 °F (50 °C) EN/IEC 60947-2
Product Or Component Type
Miniature circuit-breaker
Network Type
AC
[Ui] Rated Insulation Voltage
500 V AC 50/60 Hz EN/IEC 60947-2
Net Weight
0.25 lb(US) (0.115 kg)
Device Short Name
N40N
Network Frequency
50/60 Hz
Control Type
Toggle
Mechanical Durability
20000 cycles
Tightening Torque
17.70 lbf.in (2 N.m) top or bottom
Connections - Terminals
Tunnel type terminal top or bottom) 0.00…0.02 in² (0.75…16 mm²) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (0.33…10 mm²) - flexible Tunnel type terminal top or bottom) 0.00…0.02 in² (0.33…10 mm²) - flexible with ferrule
