NF442L4TVS812 Schneider Electric Industrial Automation Components

NF442L4TVS812 on Powermatic Associates
Schneider Electric

Part#:NF442L4TVS812

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

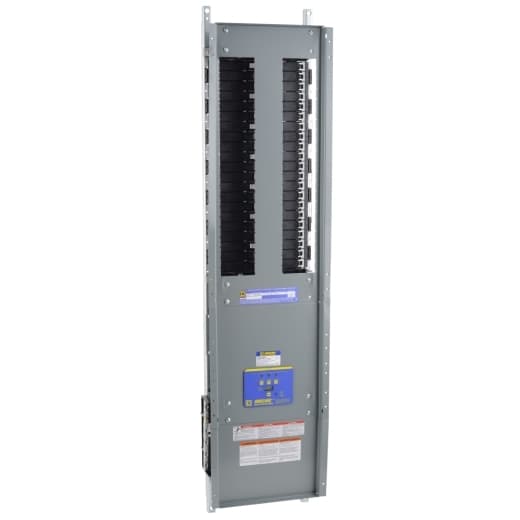

Square D by Schneider Electric NF442L4TVS812 is a panelboard designed for three-phase (3PH-4W) networks, featuring a panelboard interior with Transient Voltage Surge Suppression (TVSS). It has a rated current of 400A and operates at a rated voltage of 600Y/347Vac. This panelboard accommodates 42 circuits within its 42-space configuration. It is constructed with aluminium busbars and includes line and neutral lugs that accept a cross-section range from 1/0AWG to 750kcmil aluminium lugs, ensuring compatibility with a wide range of wiring requirements.

Product Details

  • Surge Capacity
    60 kA between phase and neutral 60 kA between phase and ground 100 kA between neutral and ground
  • Tightening Torque
    274.99…300.04 lbf.in (31.07…33.90 N.m) 0.08…0.59 in² (53.48…380 mm²) (AWG 1/0...750 kcmil) 274.99…300.04 lbf.in (31.07…33.90 N.m) 0.08…0.27 in² (53.48…177.3 mm²) (AWG 1/0...350 kcmil) 549.98 lbf.in (62.14 N.m) 0.08…0.59 in² (53.48…380 mm²) (AWG
  • Connections - Terminals
    Lug line AWG 1/0...750 kcmil aluminium Lug neutral AWG 1/0...750 kcmil aluminium
  • Wiring Configuration
    4-wire
  • Line Rated Current
    400 A
  • [Iu] Rated Interrupted Current
    25 kA
  • Height
    64 in (1625.60 mm)
  • Accessory Device
    Surge protection device, 120 kA 400 V, 150 V
  • Width
    10.44 in (265.18 mm)
  • Busbar Material
    Aluminium
  • Voltage Rating
    600Y/347 V AC
  • Number Of Phases
    3 phase
  • Number Of Spaces
    42
  • Branch Circuit Breaker Type
    EDB/EDG/EDJ
  • Panelboard Type
    Main lugs

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NF442L4TVS812 on Powermatic Associates is $27,886.69. Order now.
