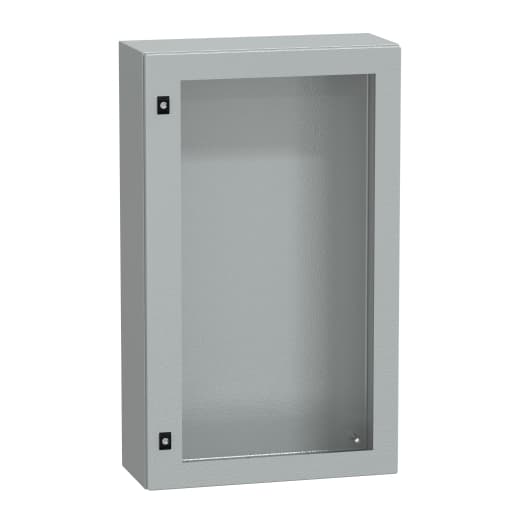

NSYCRN106250T Schneider Electric Industrial Automation Components

Name: NSYCRN106250T
Brand: Schneider Electric
Price: 534.78 USD
Availability: BackOrder

Part#:NSYCRN106250T

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - NSYCRN106250T

Product Details

Range
Spacial
Number Of Doors
Front face 1
Enclosure Nominal Height
39.37 in (1000 mm)
Door Type
Glass
Surface Finish
epoxy-polyester powder
Enclosure Nominal Width
23.62 in (600 mm)
Enclosure Nominal Depth
9.84 in (250 mm)
Net Weight
50.71 lb(US) (23 kg)
Product Name
Spacial CRN
Mounting Plate Description
Without mounting plate
Category
Compact enclosure
Color
Gray RAL 7035)
Lock Type
3 mm double-bar lock
Installation Accessory Type
Wall-mounting
Accessibility For Operation
Front
Type Of Gland Plate
Standard
Application
Multi-purpose
Standards
IEC 62208
Door Opening Side
Reversible 120 °)
Removable Parts
Door by hinges Cable gland plate by screws

Body Type

Sides made from a single folded section Back welded with double profile forming a protected sealed area

Material

Body steel Door steel and security glass

Product Certifications

CUL UL DNV-GL

Device Composition

1 body 1 cable gland plate 1 door 1 lock

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
