NSYCRN106300 Schneider Electric Industrial Automation Components

NSYCRN106300 on Powermatic Associates
Schneider Electric

Part#:NSYCRN106300

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

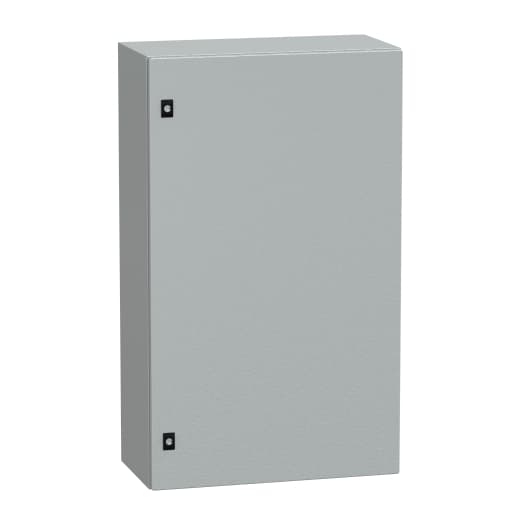

Schneider Electric NSYCRN106300 is an enclosure designed for wall-mounting, featuring a wall fixing mechanism with 4 holes, sealed with plastic plugs to ensure an IP66 and NEMA 4 degree of protection. This empty compact universal enclosure, part of the CRN sub-range, comes with a plain door and is constructed from steel with an epoxy-polyester painting for durability. It measures 1000 mm in height, 600 mm in width, and 300 mm in depth. The enclosure is finished in grey (RAL 7035) and is equipped with a 3 mm double-bar lock type for securing the contents.

Product Details

  • Door Type
    Solid
  • Product Name
    Spacial CRN
  • Application
    Multi-purpose
  • Door Opening Side
    Reversible 120 °)
  • Enclosure Nominal Depth
    11.81 in (300 mm)
  • Type Of Gland Plate
    Standard
  • Number Of Doors
    Front face 1
  • Installation Accessory Type
    Wall-mounting
  • Accessibility For Operation
    Front
  • Enclosure Nominal Height
    39.37 in (1000 mm)
  • Mounting Plate Description
    Without mounting plate
  • Material
    Body steel
  • Range
    Spacial
  • Category
    Compact enclosure
  • Standards
    IEC 62208
  • Lock Type
    3 mm double-bar lock
  • Color
    Gray RAL 7035)
  • Enclosure Nominal Width
    23.62 in (600 mm)
  • Surface Finish
    epoxy-polyester powder
  • Net Weight
    61.73 lb(US) (28 kg)
  • Body Type
    Back welded with double profile forming a protected sealed area Sides made from a single folded section
  • Removable Parts
    Door by hinges Cable gland plate by screws
  • Product Certifications
    UL CUL DNV-GL
  • Device Composition
    1 body 1 cable gland plate 1 door 1 lock

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYCRN106300 on Powermatic Associates is $365.91. Order now.

NSYCRN106300 Related Documents

Catalog-1631029339241.pdfProduct Datasheet-1631029339251.pdfInstruction Sheet-1631029339230.pdf

Similar products from: Schneider Electric Industrial Automation Components

M9A26969 on Powermatic Associates

M9A26969

Schneider Electric

Schneider Electric M9A26969 is a tripping coil designed for undervoltage trip coil release (MNx) applications. It belongs to the sub-range of tripping coils and is engineered for DIN rail mounting. This part operates with a control voltage of 230Vac AC.

0 in stock
XB7EV04MP on Powermatic Associates

XB7EV04MP

Schneider Electric

Schneider Electric XB7EV04MP is a monolithic pilot light designed for signaling applications, featuring an integral LED for illumination. This component, part of the XB7 sub-range, is constructed with a plastic body and has a round shape. It offers a rated impulse voltage (Uimp) of 6 kV and is protected to a degree of IP65, NEMA 4, and NEMA 12, ensuring its suitability for various industrial environments. The pilot light operates on a network frequency of 50/60 Hz and requires a supply voltage of 230 V AC. It has a diameter of 22 mm, with net dimensions of 29 mm in height, 54 mm in depth, and 29 mm in width. The light emitted by the LED is red, and it features screw-clamp type terminals for connection.

0 in stock
MG17416 on Powermatic Associates

MG17416

Schneider Electric

Schneider Electric MG17416 is a Miniature Circuit Breaker (MCB) designed as a supplementary protector within the C60 UL1077 sub-range. It features a rated current of 15A and operates on a single pole (1 Pole(s)) configuration. The rated operating voltage (Ue) for this MCB is 277 V. It offers a short circuit breaking rating of 10kA AIR at 240Vac, 5kA AIR at 277Vac, and 10kA AIR at 65Vdc, with protection extended to 1 Pole(s). The tripping curve for this device is classified as type C.

0 in stock
BDL36070 on Powermatic Associates

BDL36070

Schneider Electric

Square D by Schneider Electric BDL36070 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDL sub-range, featuring a PowerPact B-Frame 100 TMD 3P 70A design for 600Y/347Vac with a 14kA breaking capacity and 80% rated Everlink (Creep compensating) lugs on both line and load sides. It has a rated impulse voltage (Uimp) of 8 kV and offers a degree of protection of IP40. The rated current is 70A, with a rated voltage (AC) of 600Vac 600Y/347Vac. It boasts a mechanical durability of 20,000 operations at no load and can be mounted on a DIN rail or as an individual unit on a plate. This 3-pole (3P) circuit breaker has dimensions of 137 mm in height, 80 mm in depth, and 81 mm in width. It falls under utilisation category A and features over-current protection fixed at 70A, short-circuit hold current fixed at 640A, and short-circuit trip current fixed at 960A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 525 V. It provides thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 70 AT and an electrical durability of 10,000 operations with load at 440Vac. The frame current rating is 100 AF, and it operates via a toggle (manual) mechanism. The short circuit breaking rating varies by voltage, with 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, and 14kA at 600Y/347Vac according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.

0 in stock
M9F23204 on Powermatic Associates

M9F23204

Schneider Electric

Schneider Electric M9F23204 is a Miniature Circuit Breaker (MCB) within the C60SP sub-range, designed to provide circuit protection. This MCB features a 2-pole configuration with both poles protected, and it is rated for a current of 4A. It offers a short circuit breaking rating of 14kA AIR at 240Vac, and 10kA AIR at both 480Y/277Vac and 125Vdc. The M9F23204 is equipped with a D tripping curve, ensuring precise protection against overload and short-circuit conditions. This product is compliant with UL1077 standards for safety and performance.

3 in stock
TRV00830 on Powermatic Associates

TRV00830

Schneider Electric

Schneider Electric TRV00830 is a cable designed as part of the communication accessories sub-range, featuring a network cord with 2x male RJ45 connectors. It has a length of 3 meters.

30 in stock

Manufacturer warranty

NSYCRN106300 Schneider Electric

$365.91

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$365.91

$365.91 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare NSYCRN106300 with other Industrial Automation Components products

Door Type

Product Name

Application

Door Opening Side

Enclosure Nominal Depth

Type Of Gland Plate

Number Of Doors

Installation Accessory Ty...

Accessibility For Operati...

Enclosure Nominal Height

Selected product

NSYCRN106300
Backordered
NSYCRN106300
Schneider Electric

Schneider Electric NSYCRN106300 is an enclosure designed for wall-mounting, featuring a wall fixing ...

Door TypeSolid

Product NameSpacial CRN

ApplicationMulti-purpose

Door Opening SideReversible 120 °)

Enclosure Nominal Depth11.81 in (300 mm)

Type Of Gland PlateStandard

Number Of DoorsFront face 1

Installation Accessory TypeWall-mounting

Accessibility For OperationFront

Enclosure Nominal Height39.37 in (1000 mm)

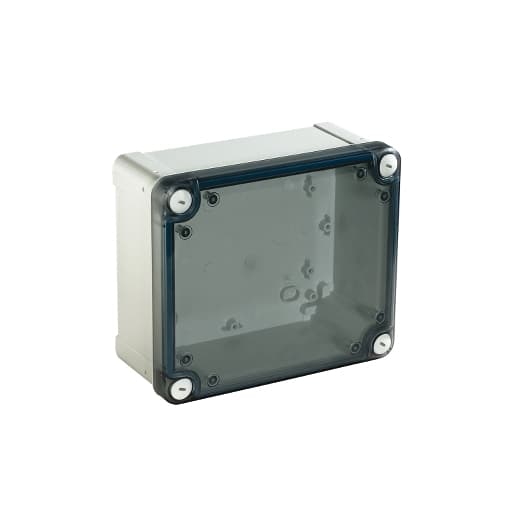

NSYTBP16128T
