Part#:QO270VH

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

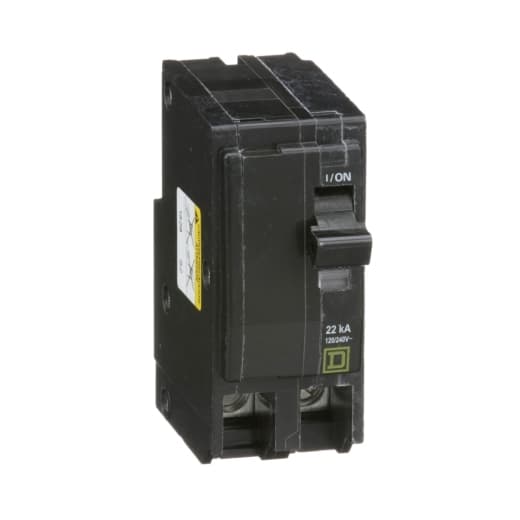

Square D by Schneider Electric QO270VH is a Miniature Circuit Breaker (MCB) designed for plug-in mounting. It features a rated current of 70A and accommodates a plug-in connection type. This MCB operates at a rated voltage of 120V to 240V AC and is compatible with a cross-section of 8-2AWG for one aluminum or copper cable. It is a 2-pole circuit breaker with a short circuit breaking rating of 22kA at 240Vac. The QO270VH is equipped with box lug terminals for secure wire connections.

Product Details

  • Product
    Miniature circuit-breaker
  • Range
    QO
  • Wire Size
    AWG 8...AWG 2 copper or aluminium
  • Ratings
    HACR rated
  • Number Of Panel Spaces
    2
  • Mounting Type
    Plug-in
  • Electrical Connection
    Box lugs
  • Width
    1.5 in (38.10 mm)
  • Current Rating
    70 A
  • Height
    3.12 in (79.25 mm)
  • Circuit Breaker Type
    Standard
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2)
  • Number Of Poles
    2P
  • Depth
    2.91 in (73.91 mm)
  • Interrupt Rating
    22 kA 120/240 V AC 50/60 Hz 22 kA 120 V AC 50/60 Hz
  • Voltage Rating
    120/240 V AC 120 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO270VH on Powermatic Associates is $224.00. Order now.
