QO342MQB150 Schneider Electric Electronic Components

QO342MQB150 on Powermatic Associates
Schneider Electric

Part#:QO342MQB150

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

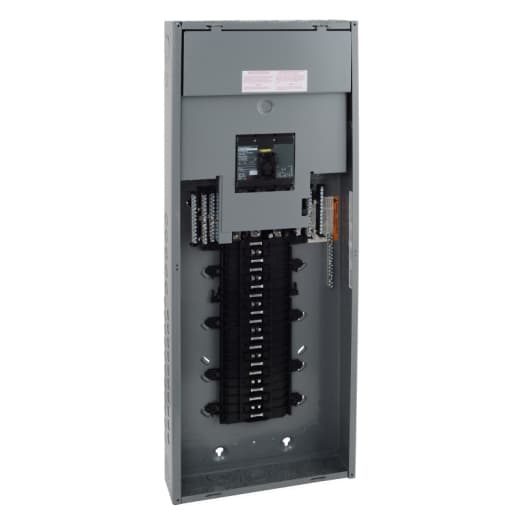

Square D by Schneider Electric QO342MQB150 is a load center designed for surface mounting with a rated current of 150A and a connection type featuring lugs. It measures H375mm x W362mm (H14.76" x W14.25") and offers 42 spaces for single pole circuits. This load center is built with a welded galvannealed steel enclosure and tin-plated copper busbars, ensuring durability and conductivity. It operates at a rated voltage of 120Vac/240Vac and has a short circuit breaking rating of 25kA. The QO342MQB150 is equipped with a degree of protection rated at NEMA 3R, making it suitable for various environmental conditions.

Product Details

  • Load Center Type
    Main breaker
  • Marketing Trade Name
    QO
  • Voltage Rating
    120/240 V AC
  • Product Type
    Load Center
  • Ground Bar
    Grounding bar (ordered separately)
  • Cover Type
    Surface cover
  • Wire Size
    AWG 4...300 kcmil copper or aluminium
  • Rated Current
    150 A
  • Height
    14.76 in (375 mm)
  • Maximum Number Of Single Pole Circuits
    42
  • Enclosure Material
    Welded galvannealed steel
  • Width
    14.25 in (362 mm)
  • Max Short Circuit Current Rating
    25 kA
  • Electrical Connection
    Lugs
  • Busbar Material
    Tin plated copper busbar
  • Number Of Phases
    3 phase
  • Tightening Torque
    Cover 20 lb.in
  • Number Of Spaces
    42
  • Box Number
    14R
  • Surface Finish
    Baked enamel Gray
  • Wiring Configuration
    3-wire 4-wire

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO342MQB150 on Powermatic Associates is $2,307.00. Order now.
