Part#:QO816L100FCP

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

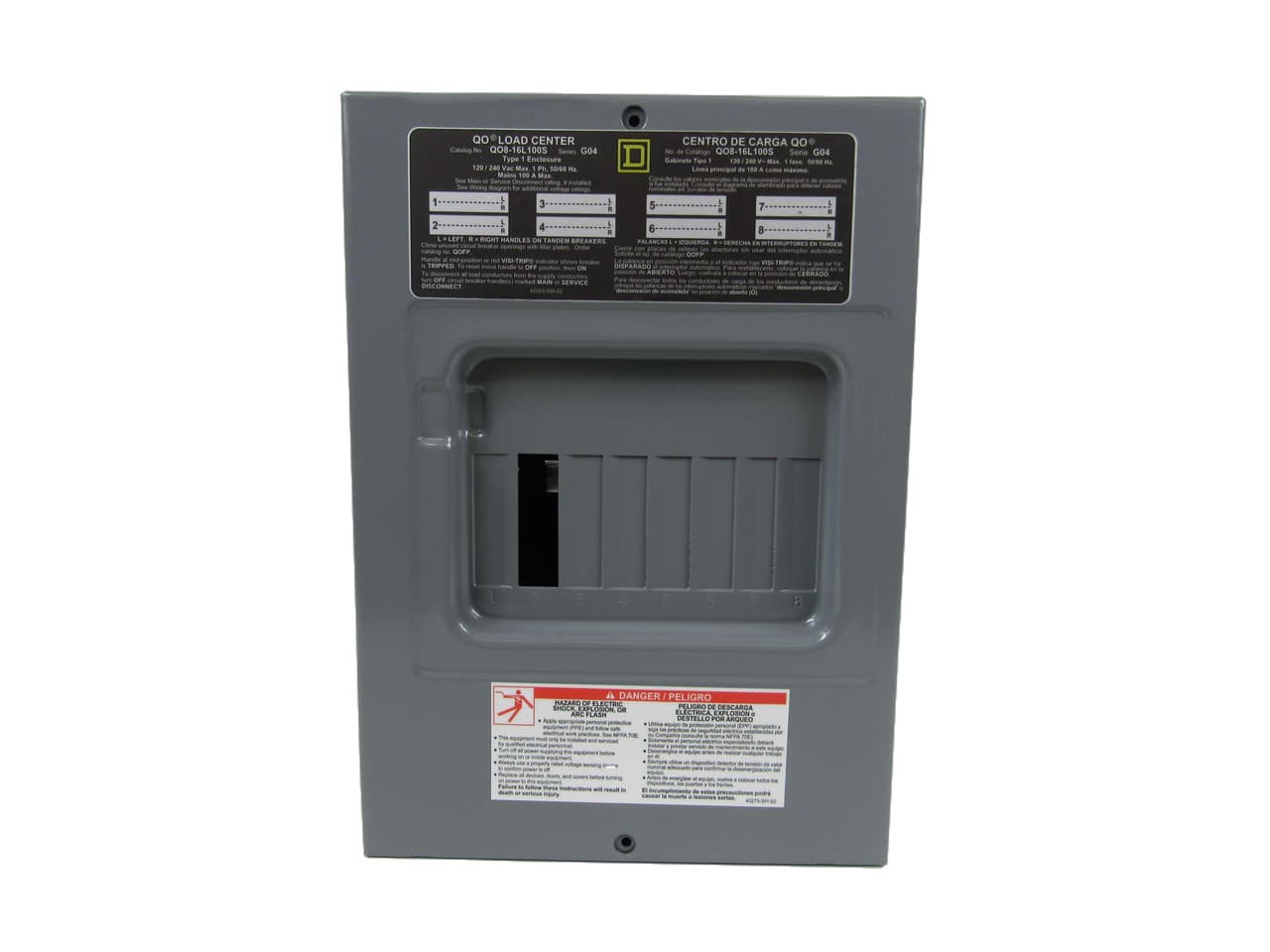

Square D by Schneider Electric QO816L100FCP is a load center designed for flush mounting with a rated current of 100A. It features a connection type of lugs and dimensions of H319mm x W226mm (H12.56" x W8.9"), offering 8-spaces for circuit accommodation. This load center is built with a welded sheet steel enclosure and tin-plated aluminum busbar, ensuring compatibility with its intended environment. It operates at a rated voltage of 120Vac/240Vac and can support up to 16 single pole circuits or 8 tandem breakers. The QO816L100FCP is equipped with a degree of protection classified as NEMA 1 and has a short circuit breaking rating of 10kA.

Product Details

  • Number Of Spaces
    8
  • Busbar Material
    Tin plated aluminium busbar
  • Marketing Trade Name
    QO
  • Voltage Rating
    120/240 V AC
  • Surface Finish
    Baked enamel Gray
  • Product Type
    Load Center
  • Maximum Number Of Tandem Breakers
    8
  • Height
    12.56 in (319 mm)
  • Max Short Circuit Current Rating
    10 kA
  • Electrical Connection
    Lugs
  • Cover Type
    Flush cover
  • Number Of Phases
    1 phase
  • Width
    8.90 in (226 mm)
  • Rated Current
    100 A
  • Enclosure Material
    Welded sheet steel
  • Maximum Number Of Single Pole Circuits
    16
  • Wiring Configuration
    3-wire
  • Load Center Type
    Main lugs
  • Wire Size
    AWG 8...AWG 1 aluminium/copper
  • Box Number
    4
  • Ground Bar
    Grounding bar (ordered separately)
  • Tightening Torque
    Main lugs 50 lb.in, AWG 8, aluminium/copper Main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
