QOB2201201 Schneider Electric Industrial Automation Components

QOB2201201 on Powermatic Associates
Schneider Electric

Part#:QOB2201201

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

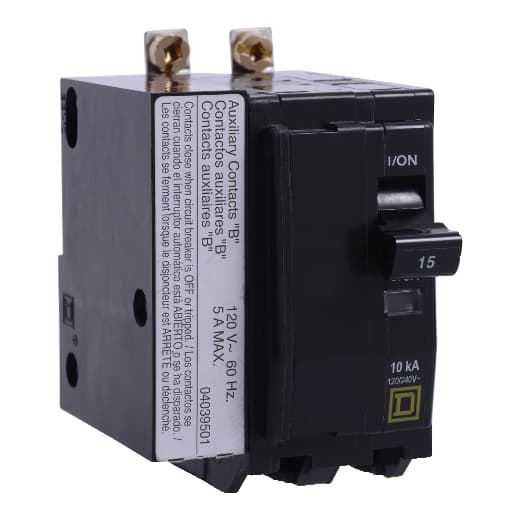

Schneider Electric - QOB2201201

Product Details

  • Ratings
    HACR rated
  • Number Of Panel Spaces
    3
  • Current Rating
    20 A
  • Number Of Poles
    2P
  • Height
    3 in (76.20 mm)
  • Mounting Type
    Bolt-on
  • Wire Size
    AWG 14...AWG 8 copper or aluminium
  • Circuit Breaker Type
    Standard
  • Range
    QO
  • Depth
    2.91 in (73.91 mm)
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2)
  • Product
    Miniature circuit-breaker
  • Options
    Auxiliary switch 120 V AC 1B
  • Electrical Connection
    Pressure plate
  • Width
    2.25 in (57.15 mm)
  • Voltage Rating
    120/240 V AC 120 V AC 48 V DC
  • Interrupt Rating
    10 kA 120/240 V AC 50/60 Hz 10 kA 120 V AC 50/60 Hz 5 kA 48 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOB2201201 on Powermatic Associates is $221.00. Order now.
