QOB215FT Schneider Electric Electronic Components

QOB215FT on Powermatic Associates
Schneider Electric

Part#:QOB215FT

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

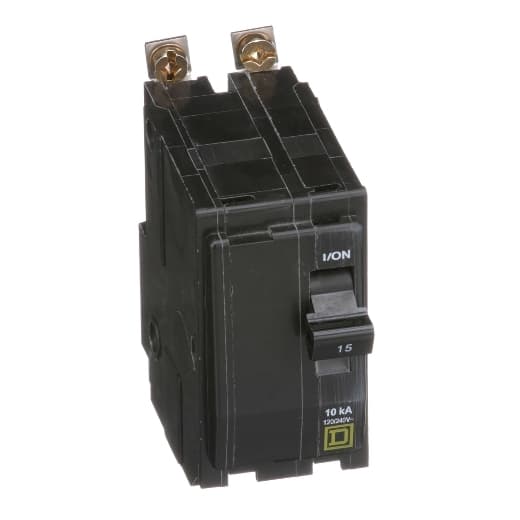

Mini circuit breaker, QO, 15A, 2 pole, 120/240 VAC, 10 kA, bolt on mount, fungal treatment

Product Details

  • Product
    Miniature circuit-breaker
  • Height
    3 in (76.20 mm)
  • Circuit Breaker Type
    Standard
  • Width
    1.5 in (38.10 mm)
  • Range
    QO
  • Electrical Connection
    Pressure plate
  • Current Rating
    15 A
  • Wire Size
    AWG 14...AWG 8 copper or aluminium
  • Mounting Type
    Bolt-on
  • Tightening Torque
    40.71 lbf.in (4.6 N.m)
  • Number Of Poles
    2P
  • Number Of Panel Spaces
    2
  • Ratings
    HACR rated
  • Depth
    2.91 in (73.91 mm)
  • Voltage Rating
    120/240 V AC 120 V AC 48 V DC
  • Interrupt Rating
    10 kA 120/240 V AC 50/60 Hz 10 kA 120 V AC 50/60 Hz 5 kA 48 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
