QOB220H35 Schneider Electric Industrial Automation Components

QOB220H35 on Powermatic Associates
Schneider Electric

Part#:QOB220H35

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

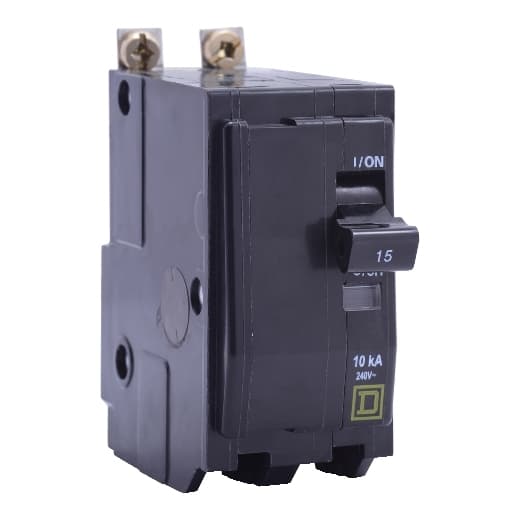

Schneider Electric - QOB220H35

Product Details

  • Range
    QO
  • Height
    3 in (76.20 mm)
  • Ratings
    Not rated
  • Mounting Type
    Bolt-on
  • Product
    Miniature circuit-breaker
  • Current Rating
    20 A
  • Number Of Panel Spaces
    2
  • Electrical Connection
    Pressure plate
  • Width
    1.5 in (38.10 mm)
  • Circuit Breaker Type
    Standard
  • Wire Size
    AWG 14...AWG 8 copper or aluminium
  • Number Of Poles
    2P
  • Depth
    2.91 in (73.91 mm)
  • Tightening Torque
    40.71 lbf.in (4.6 N.m)
  • Voltage Rating
    120/240 V AC 240 V AC 120 V AC
  • Interrupt Rating
    10 kA 120/240 V AC 50/60 Hz 10 kA 240 V AC 50/60 Hz 10 kA 120 V AC 50/60 Hz

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOB220H35 on Powermatic Associates is $288.00. Order now.
