QOB220VHCAFI Schneider Electric Industrial Automation Components

QOB220VHCAFI on Powermatic Associates
Schneider Electric

Part#:QOB220VHCAFI

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

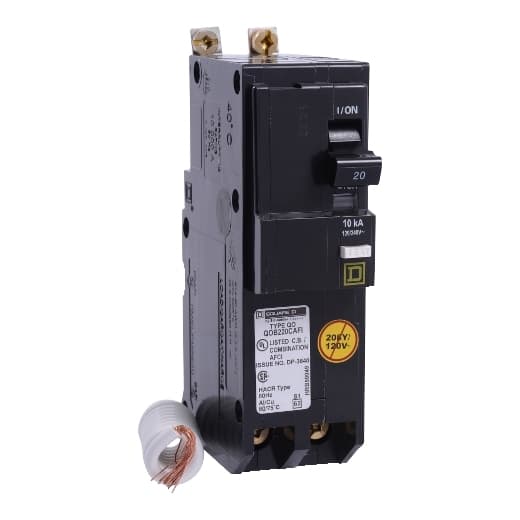

Schneider Electric - QOB220VHCAFI

Product Details

  • Electrical Connection
    Pressure plate
  • Depth
    2.91 in (73.91 mm)
  • Circuit Breaker Type
    Combination ARC-fault
  • Number Of Panel Spaces
    2
  • Range
    QO
  • Connections Terminals
    Pigtail neutral
  • Width
    2.25 in (57.15 mm)
  • Current Rating
    20 A
  • Mounting Type
    Bolt-on
  • Height
    4.75 in (120.65 mm)
  • Product
    Miniature circuit-breaker
  • Number Of Poles
    2P
  • Interrupt Rating
    22 kA 120/240 V AC 50/60 Hz 22 kA 120 V AC 50/60 Hz
  • Voltage Rating
    120/240 V AC 120 V AC
  • Wire Size
    AWG 14...AWG 8 copper or aluminium AWG 14...AWG 10 copper

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOB220VHCAFI on Powermatic Associates is $1,088.00. Order now.

QOB220VHCAFI Related Documents

Product Datasheet-1631029470708.pdfInstruction Sheet-1631029470710.pdfCatalog-1631029470706.pdf
